Specifications

Dimension drawings

harper-wall-hung-685-spec_v1 — dimension drawing (PDF)

harper-wall-hung-835-spec_v1 — dimension drawing (PDF)

harper-wall-hung-1135-spec_v1 — dimension drawing (PDF)

harper-wall-hung-1435-centre-spec_v1 — dimension drawing (PDF)

harper-wall-hung-1435-double-spec_v1 — dimension drawing (PDF)

harper-wall-hung-1735-centre-spec_v1 — dimension drawing (PDF)

harper-wall-hung-1735-double-spec_v1 — dimension drawing (PDF)

Warranty & Return

Warranty

ADP manufacturer warranty applies according to the selected cabinet and top. Domestic cabinetry, Cherry Pie and Durasein benchtops — 10 years. Refer to the current manufacturer warranty schedule for hardware, electrical components, commercial installations, conditions and exclusions.

Installation and care must follow the manufacturer instructions. Keep proof of purchase.

ADP manufacturer warranty (PDF)

Returns

Made-to-order, customised and discounted products are excluded from change-of-mind returns. Eligible full-price stock items may be requested for return within 30 days, subject to approval and return conditions.

Lodge returns and warranty claims through the Ideal Return & Claim panel before returning any goods.

Ideal Return & Claim panel

Your rights under the Australian Consumer Law remain unaffected.

Maintenance & Care

Clean with a soft, non-abrasive cloth. Follow the manufacturer care instructions for each material.

ADP care and maintenance guide

Downloadable Resources

Installation

ADP installation guide

Order forms

Harper Benchtop and Cabinet Only order form

Product information

Harper 685 Wall Hung — official product information

Harper 835 Wall Hung — official product information

Harper 1135 Wall Hung — official product information

Harper 1435 Wall Hung — official product information

Harper 1735 Wall Hung — official product information

Other resources

Como Large Drawer Organiser (Full Depth)

Como Small Drawer Organiser (Full Depth)

Order My Color Samples

Click on the link below to order your colour samples.

Order ADP colour samples

Order a physical finish sample before confirming your cabinet finish.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

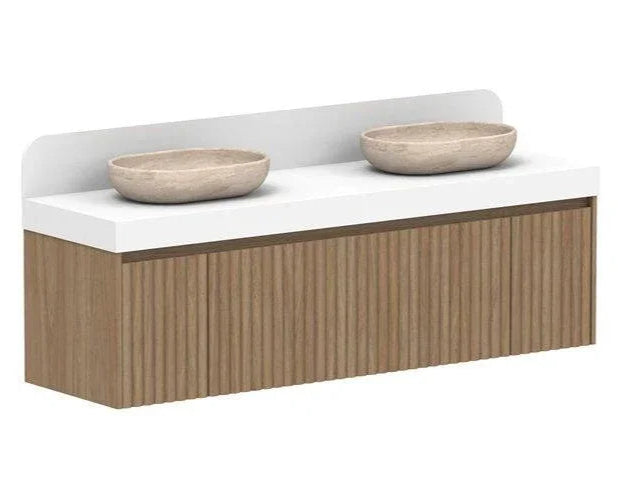

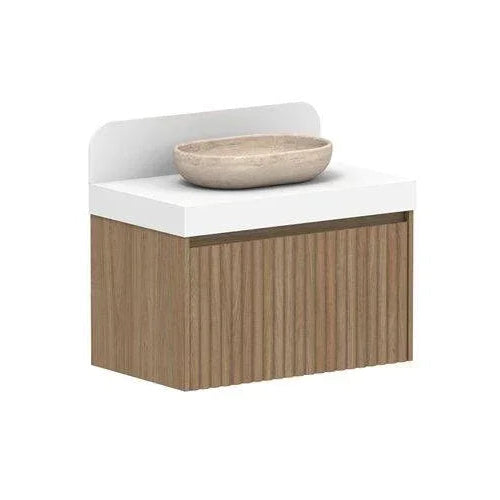

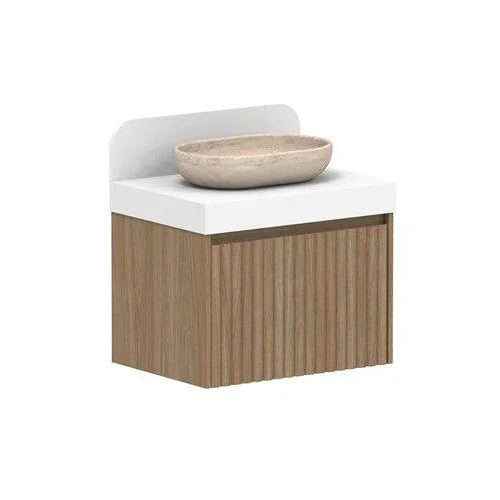

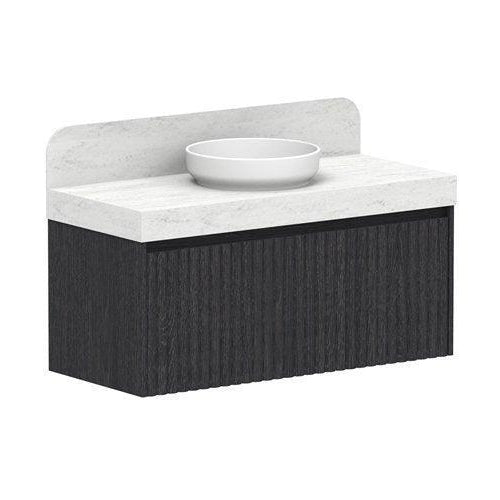

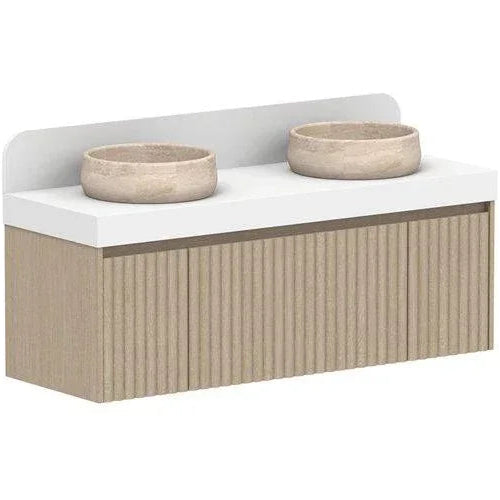

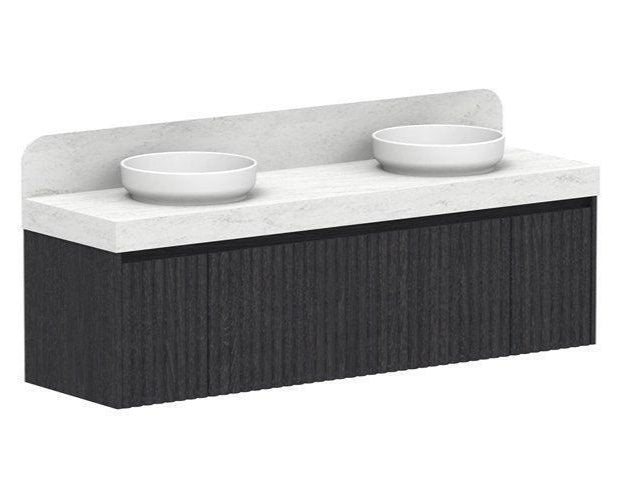

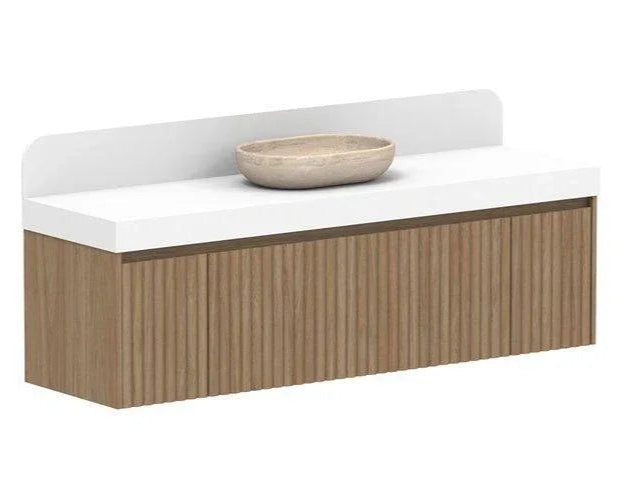

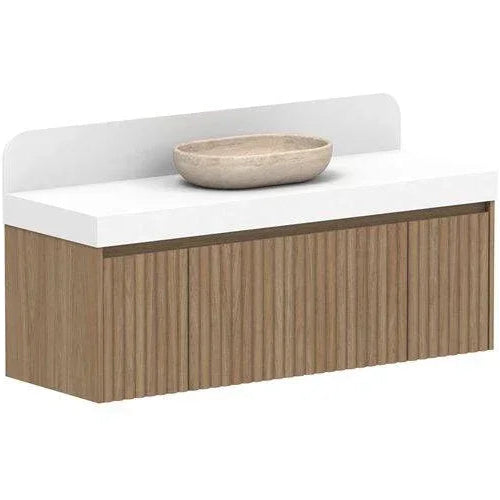

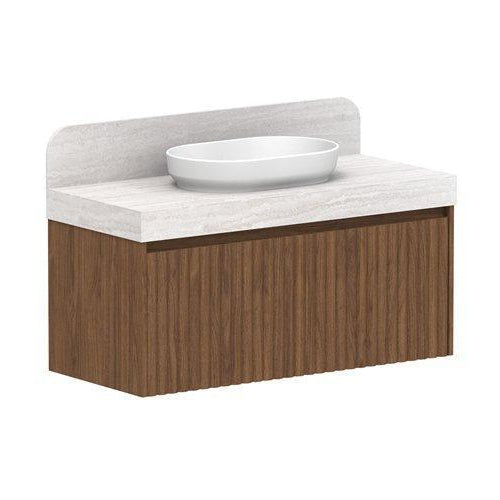

ADP Harper Wall Hung Vanity

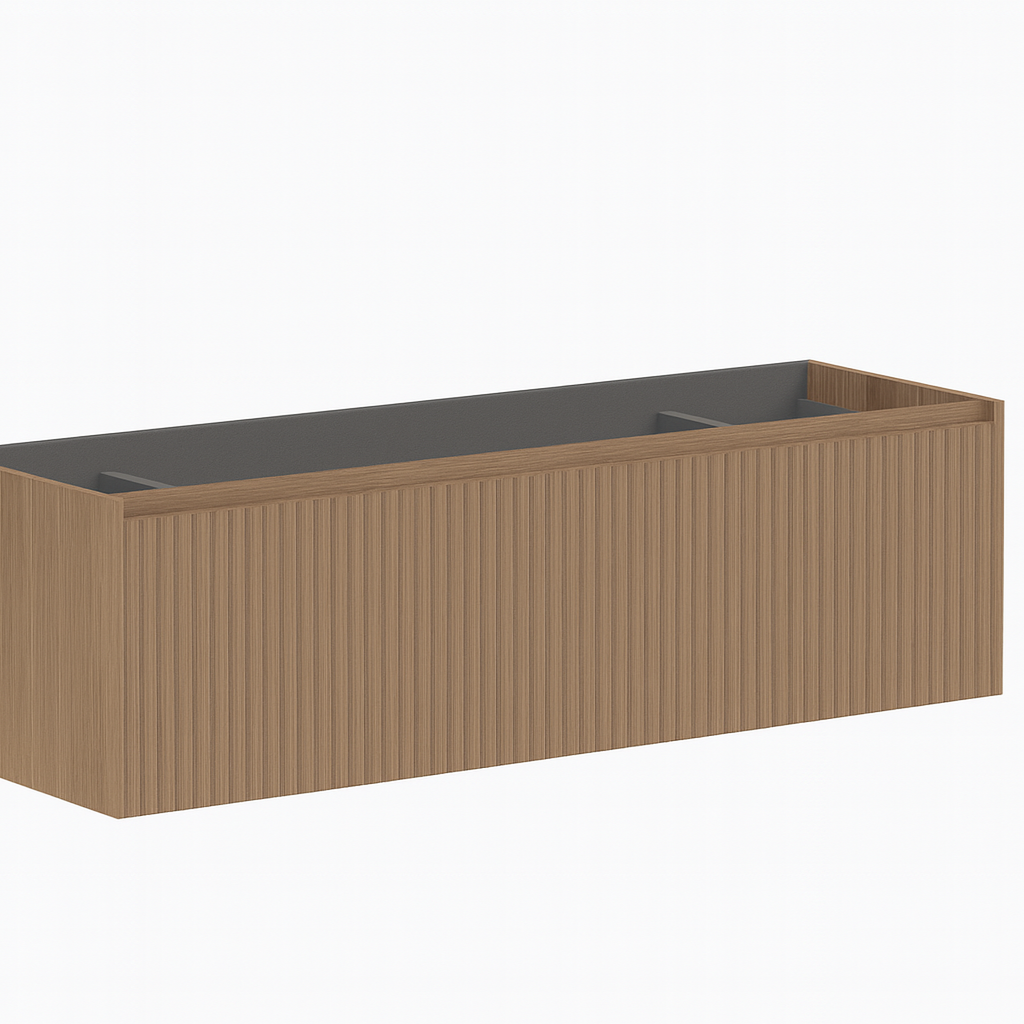

Name: 1735mm / No Top / Double Bowl Basins ADP Harper Wall Hung Vanity
SKU: HARFAS1735WHDNT
Price: 3407.65 AUD

Vendor: ADP

SKU: HARFAS0685WHCCP

Save 15%

$2,506.65

$2,506.65 ~~$2,949.00~~

Tax included. Shipping calculated at checkout.

Size: 685mm

685mm 835mm 1135mm 1435mm 1735mm

Vanity Tops: Stone Benchtop

Stone Benchtop No Top

Centre/Double Bowl Option: Centre Basin

Centre Basin Double Bowl Basins

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key features

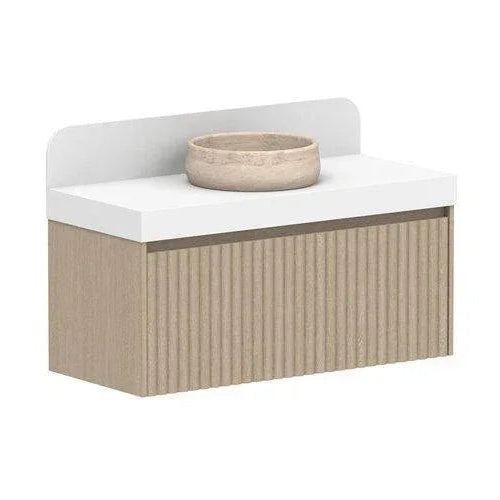

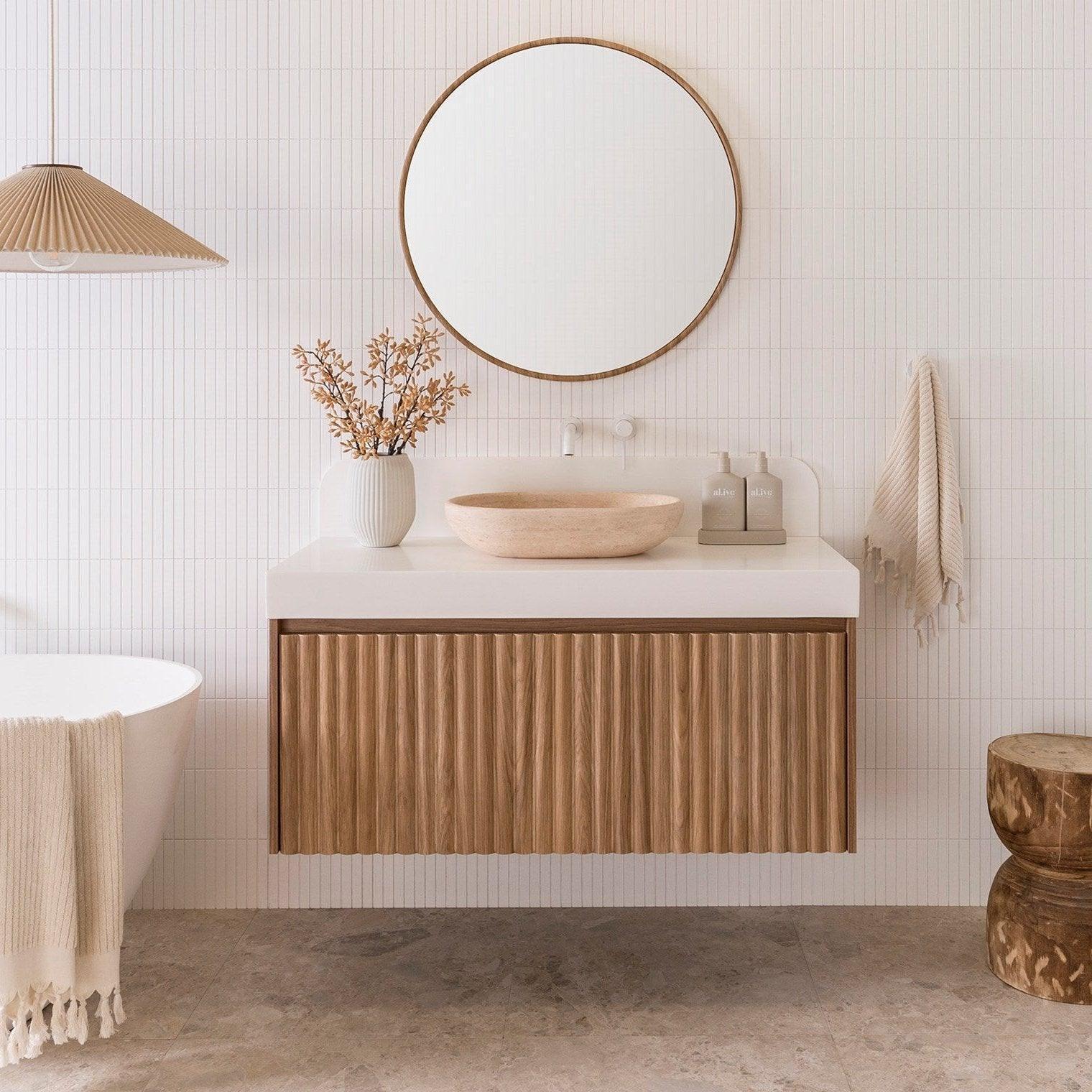

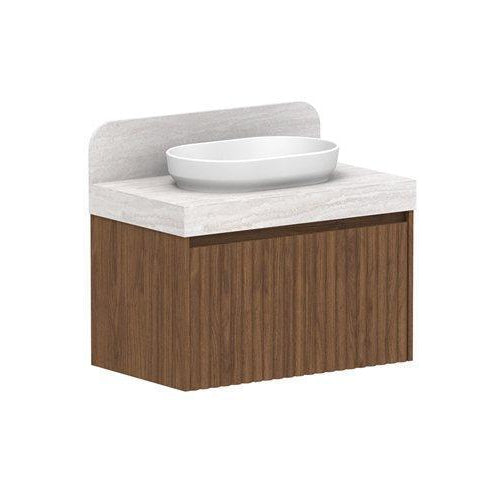

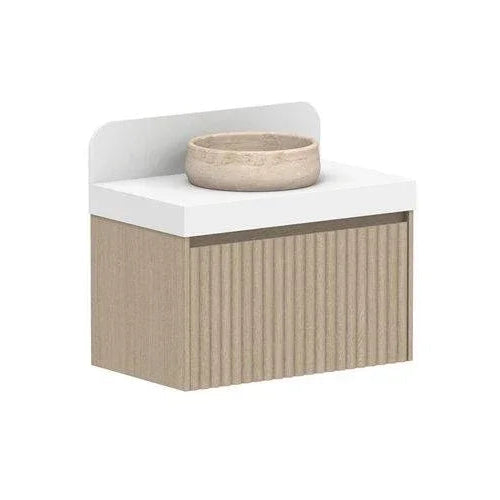

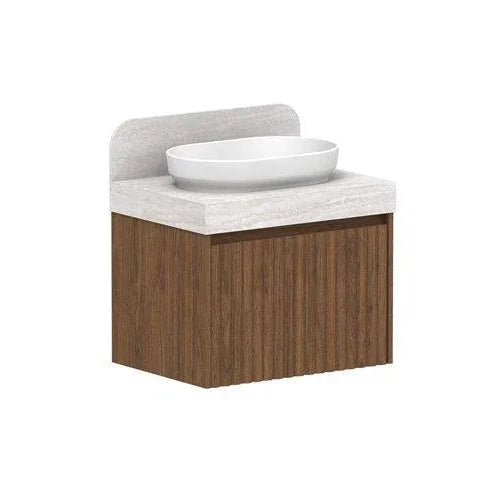

ADP Harper Wall Hung Vanity.

Australian made.
Designed by Alisa & Lysandra.

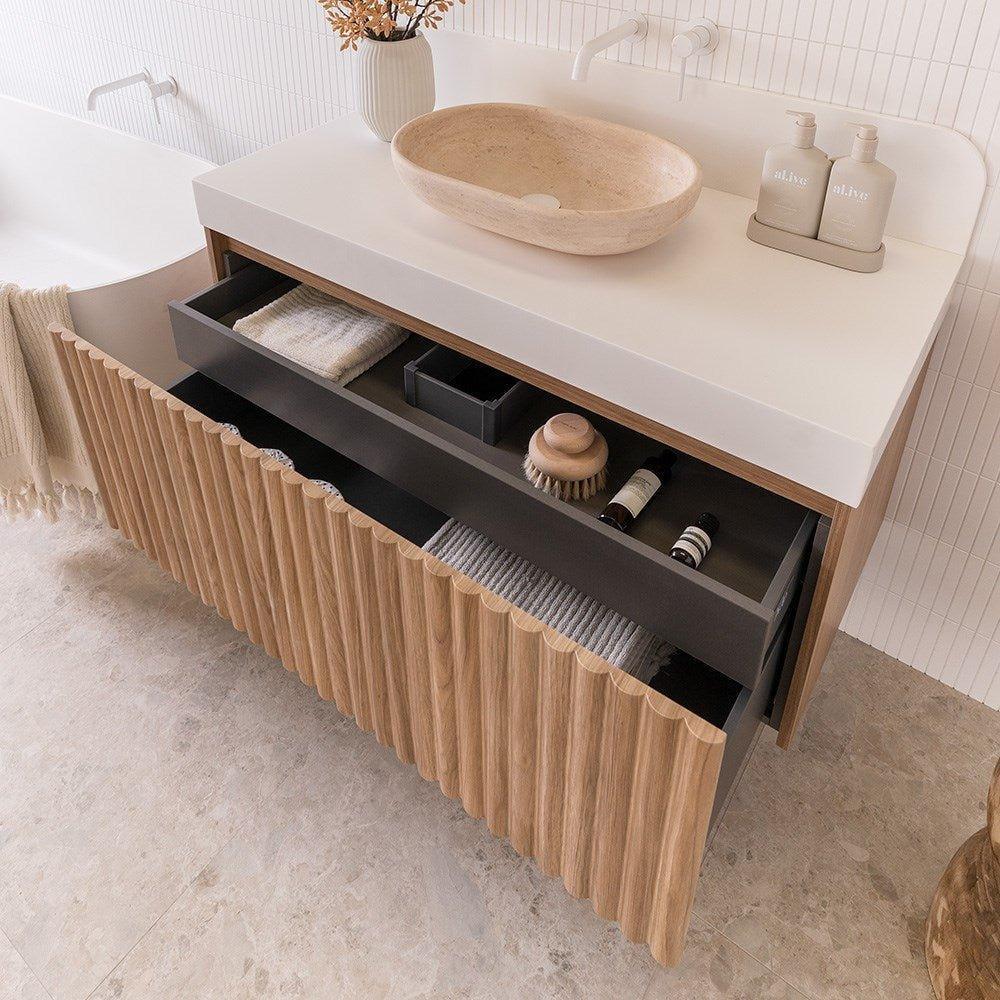

Wall-hung all-drawer vanity with thermolaminated dowel-front cabinetry.

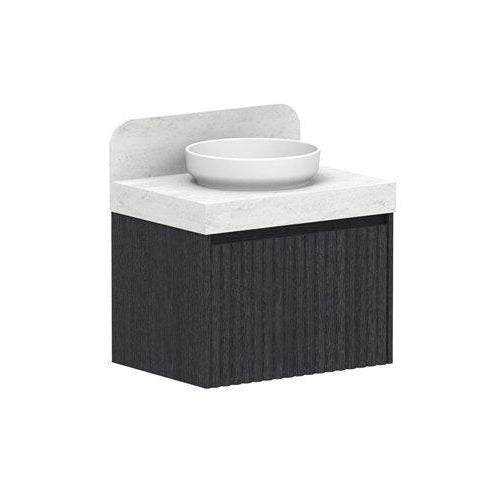

Choose Coastal Oak, Prime Oak, Florentine Walnut or Estella Oak Woodmatt Dowel.

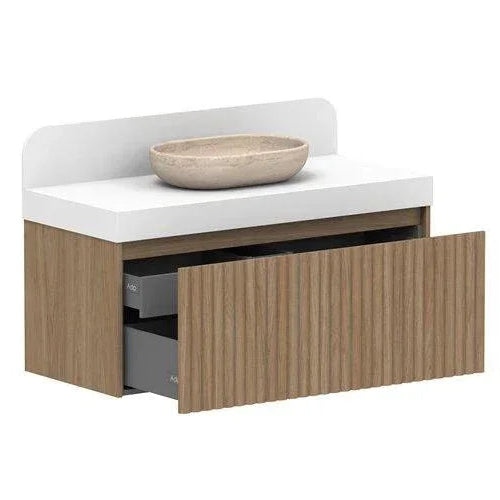

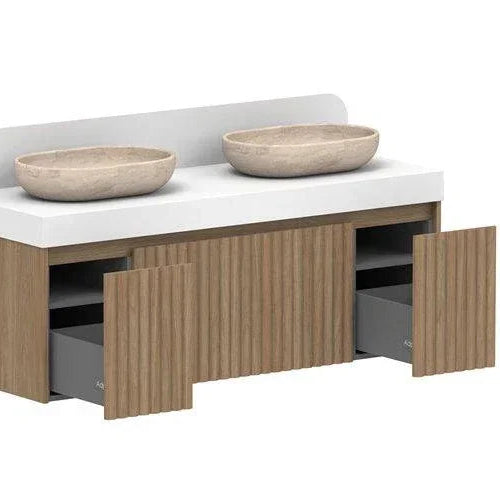

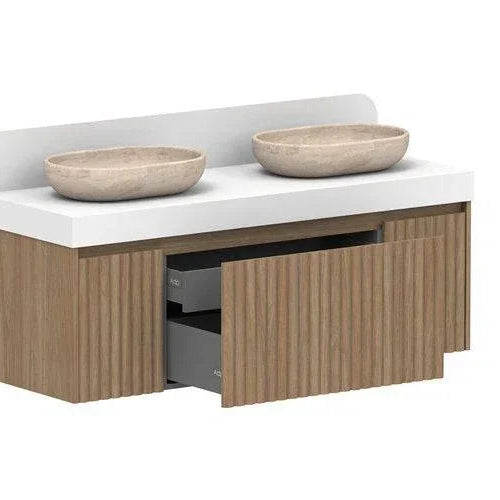

Premium Graphite interior with ADP Deluxe soft-close drawers and finger pull.
Cherry Pie and Durasein benchtop configurations have a 90 mm profile.
Complimentary matching 180 mm splashback with 80 mm radius is included with benchtop configurations.
Compatible ADP basins are selected separately and matched to the selected size and bowl position.
ADP Chrome universal plug & waste is included with benchtop configurations. Other available finishes incur the linked accessory charge.

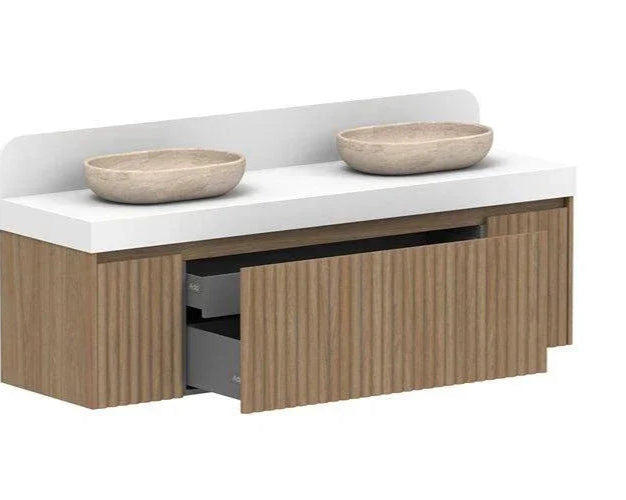

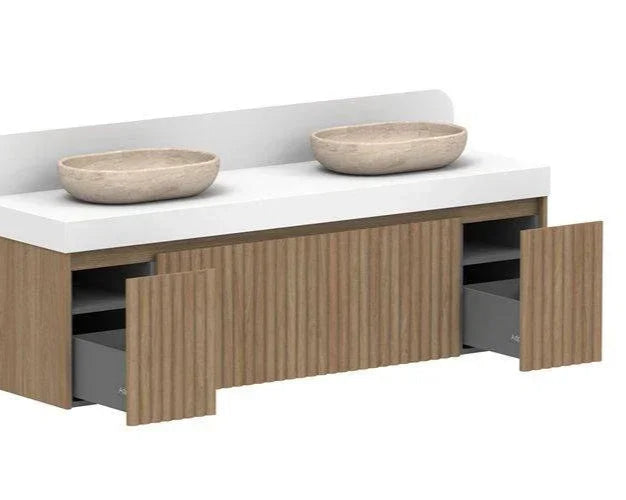

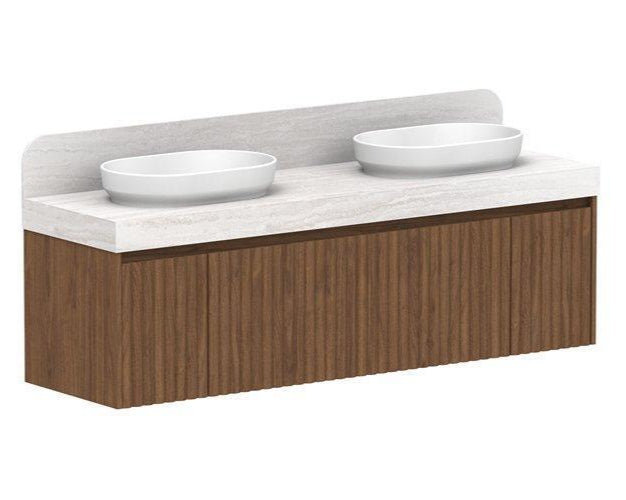

Double-bowl benchtop configurations include two Space Saver Plumbing Kits at no additional charge.

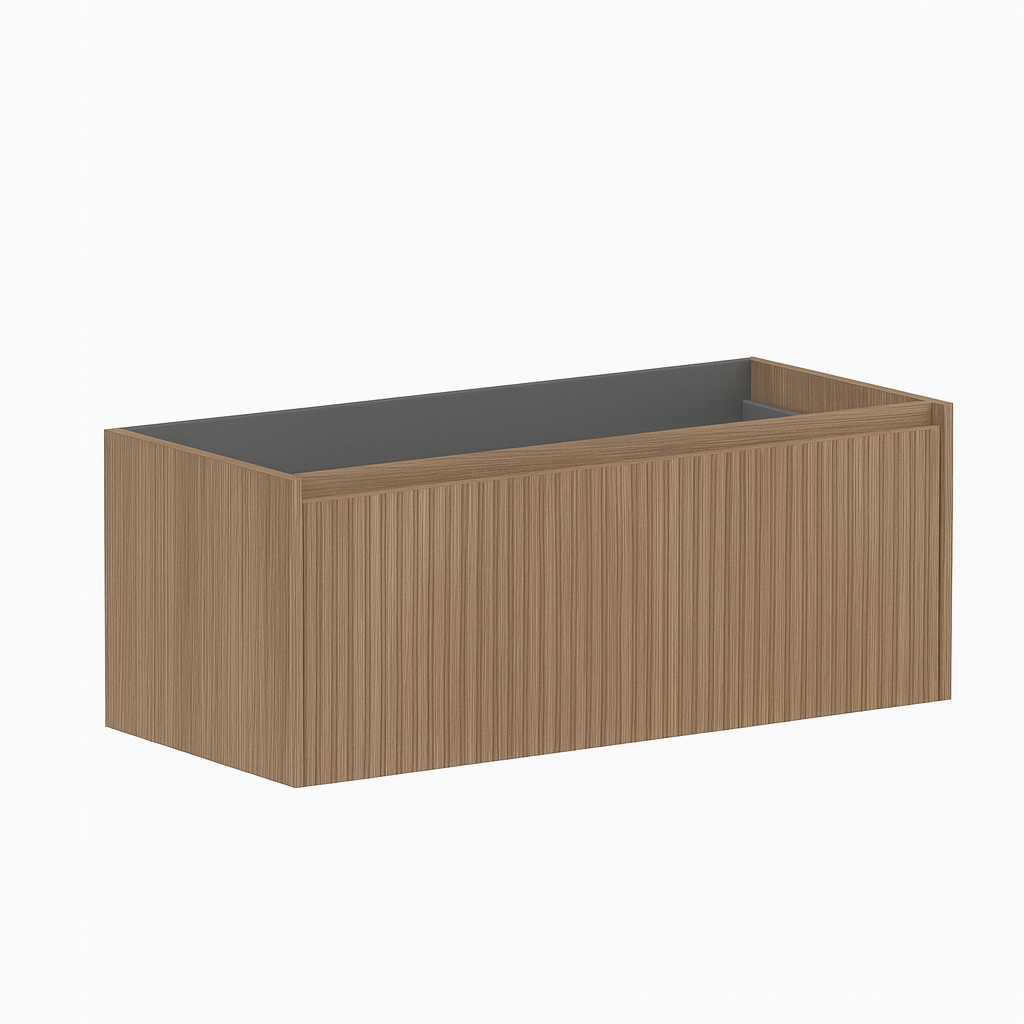

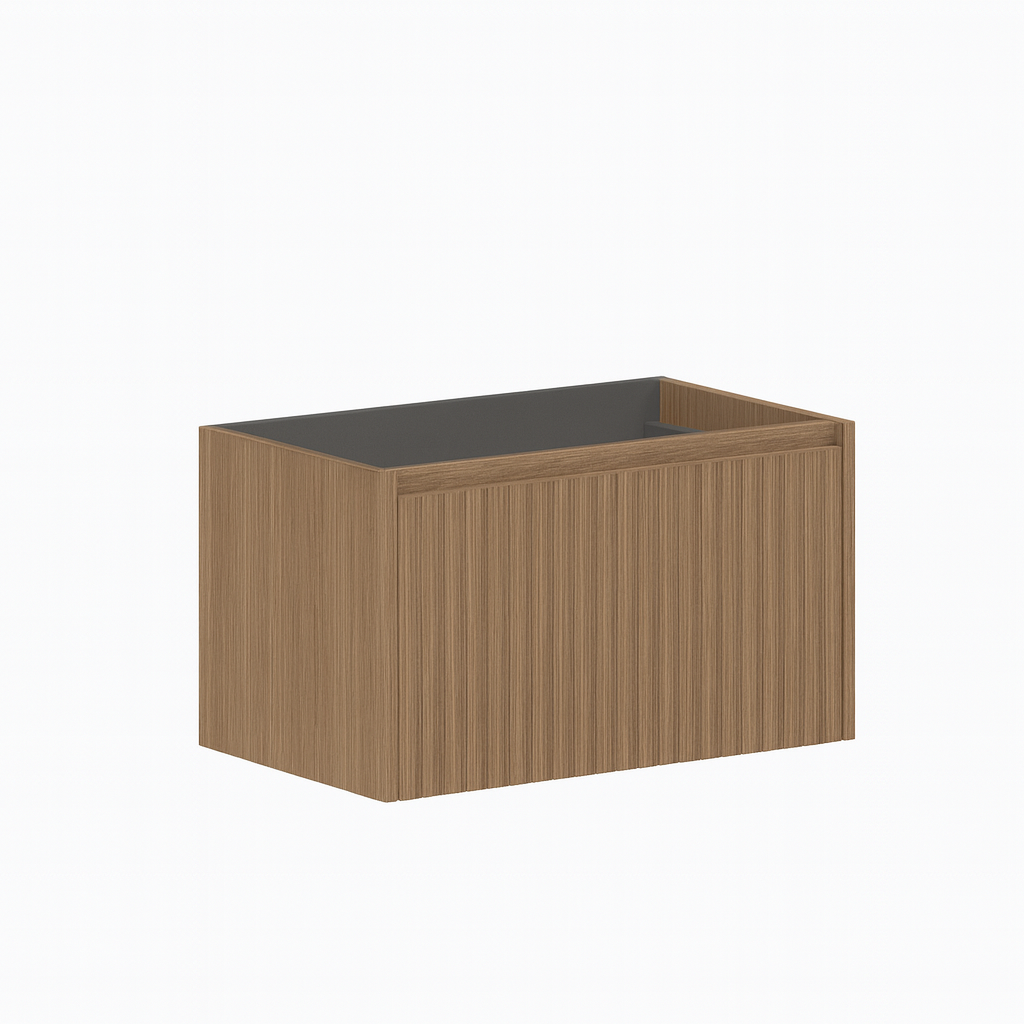

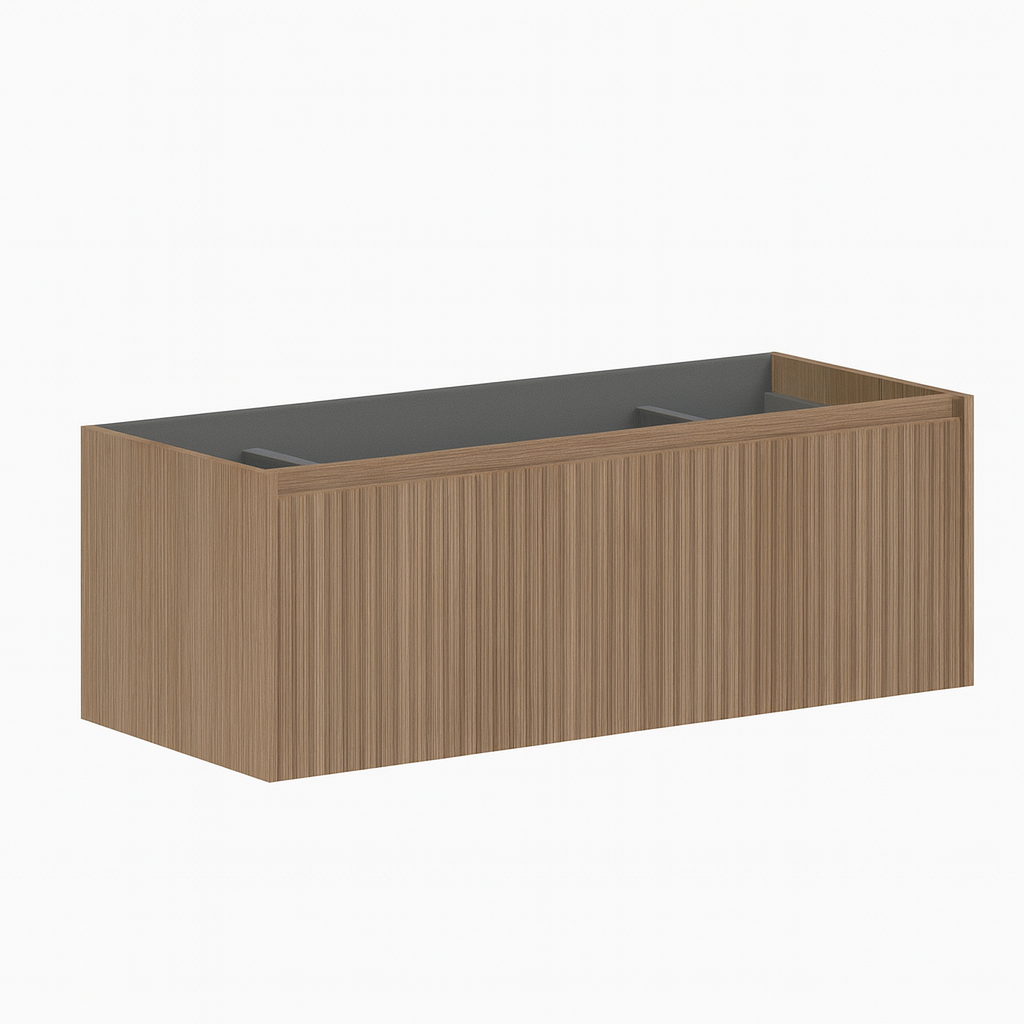

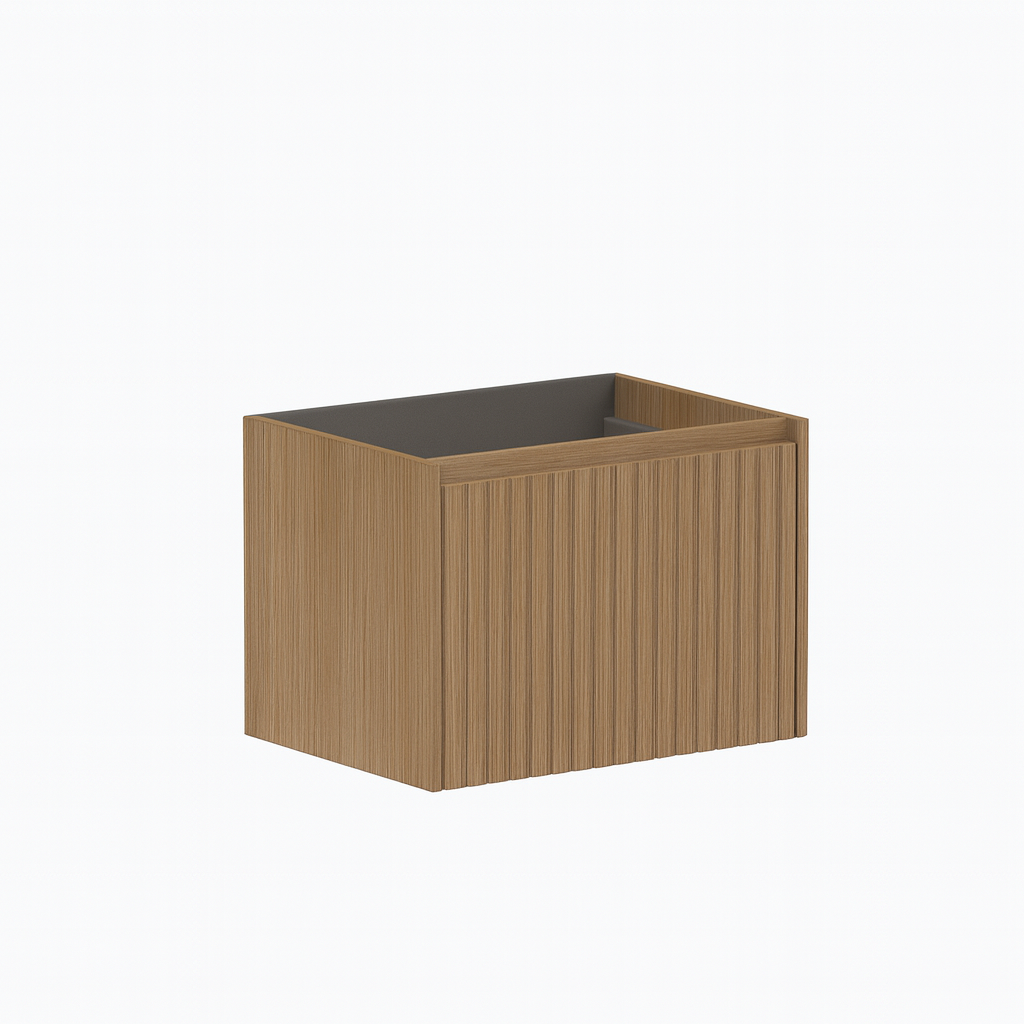

Cabinet Only excludes the benchtop, splashback, basin and plug & waste.
Harper is available in the listed standard sizes and cannot be dimensionally customised.
Protect thermolaminated cabinetry from prolonged direct sunlight to prevent discolouration or fading.
Tapware is not included.
Dimensions exclude the height of a separate basin. Use the matching official drawing and measure the delivered product before installation.

Dimensions & performance

Collection	Harper
Product Categories	Vanity
Product Type	Full Depth Vanity
Nominal size	685 mm; 835 mm; 1135 mm; 1435 mm; 1735 mm
Installation	Wall Hung
Cabinet configuration	All-Drawer
Cabinet dimensions	670.5 (W) × 494 (D) × 455 (H) mm; 820.5 (W) × 494 (D) × 455 (H) mm; 1120.5 (W) × 494 (D) × 455 (H) mm; 1421.5 (W) × 494 (D) × 455 (H) mm; 1721.5 (W) × 494 (D) × 455 (H) mm
Dimensions to benchtop	685 (W) × 500 (D) × 545 (H) mm; 835 (W) × 500 (D) × 545 (H) mm; 1135 (W) × 500 (D) × 545 (H) mm; 1435 (W) × 500 (D) × 545 (H) mm; 1735 (W) × 500 (D) × 545 (H) mm
Vanity top	Cherry Pie Benchtop; Cabinet Only
Bowl / plumbing position	Centre Bowl, Double Bowl
Cabinet finish	Coastal Oak, Prime Oak, Florentine Walnut or Estella Oak Woodmatt Dowel
Interior	Premium Graphite — fixed
Drawer system	ADP Deluxe soft-close drawers
Cabinet design	Thermolaminated dowel-front cabinetry
Visible drawer fronts	1; 3
Handle / finger pull	Finger pull
Benchtop profile	90 mm built-up profile; Cherry Pie material 20 mm / Durasein material 12 mm
Overall height including splashback	725 mm
Matching splashback	Complimentary 180 mm high splashback with 80 mm radius in the matching benchtop material
Basin	Compatible ADP basin selected separately for the chosen size and bowl position
Plug & waste	ADP Chrome universal plug & waste included with top configurations; alternative finishes at the linked accessory price
Cabinet Only	No benchtop, splashback, basin or plug & waste.
