Phoenix Builders Shower / Bath Diverter Mixer Body Only, Brushed Nickel

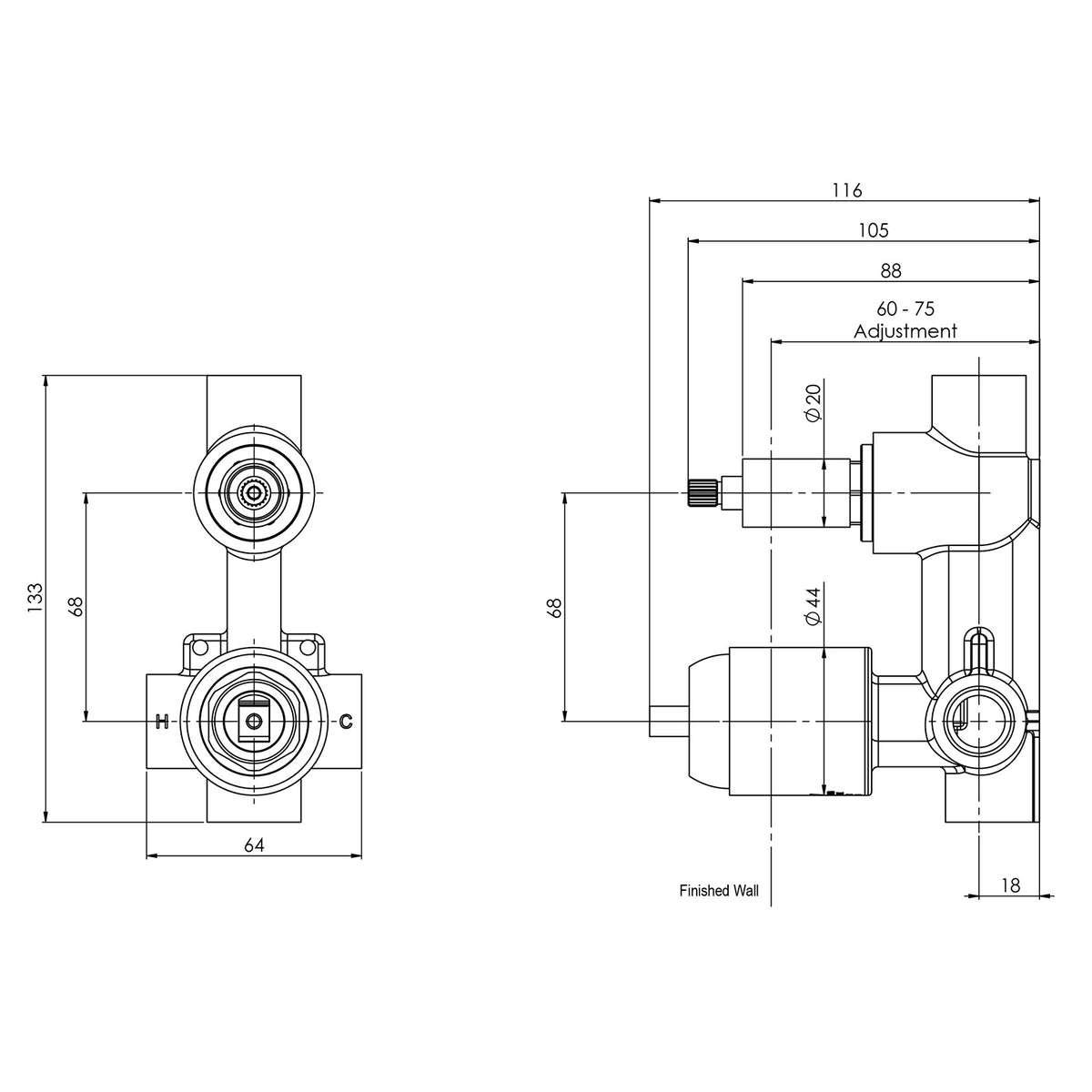

Phoenix Builders diverter mixer body dimension drawing — millimetres

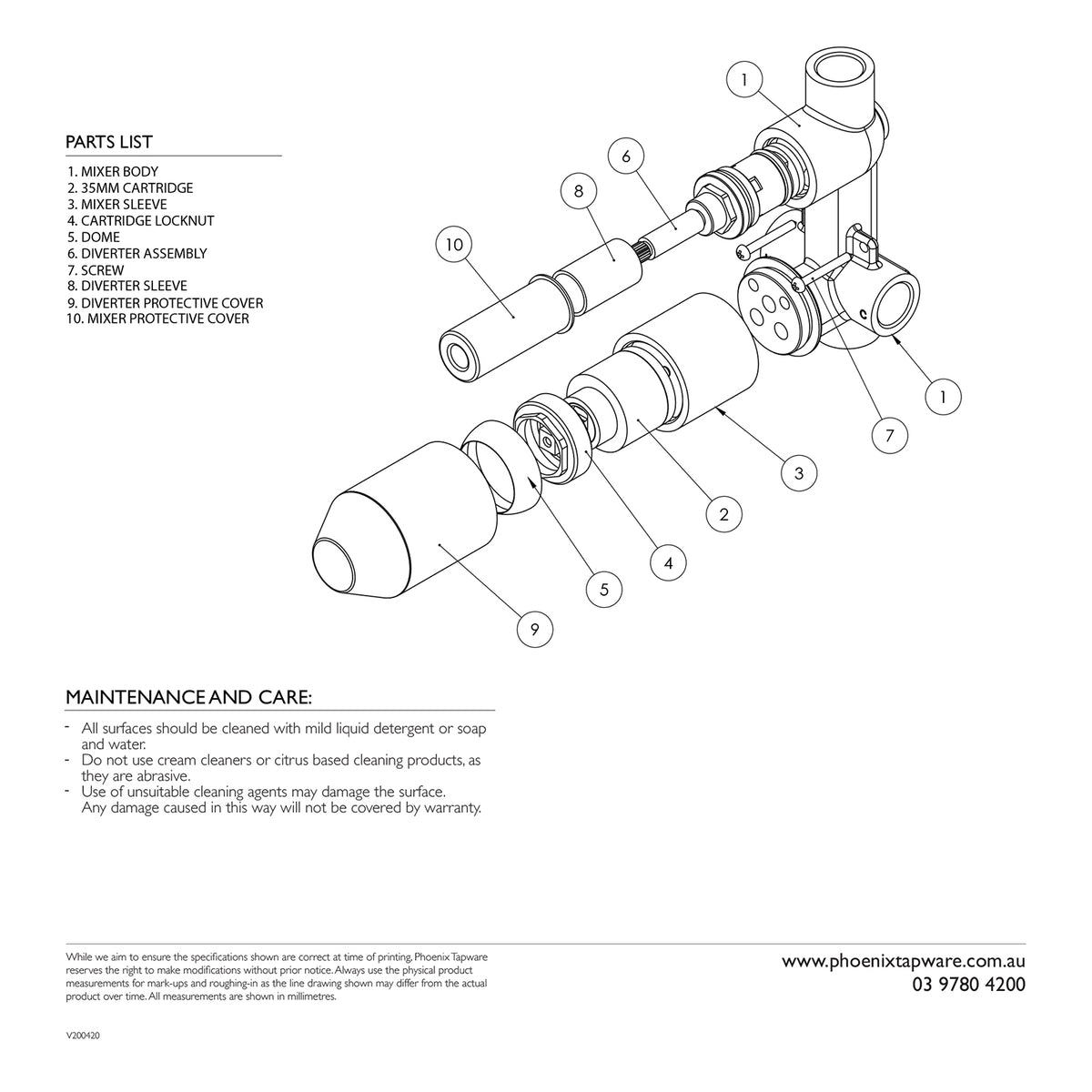

Phoenix Builders diverter mixer body parts diagram supplied for the lead-free model

Phoenix Builders Brushed Nickel body and trim kit — both components required and sold separately

Specifications

Technical documents

Product specification — 150-7930-40-1 (PDF)

Dimension drawing (JPG)

Installation instructions — IN0362 Rev B (PDF)

Technical information

Model: 150-7930-40-1
Collection: Phoenix Builders
Finish: Brushed Nickel
Construction: lead-free brass
Cartridge: 35 mm ceramic cartridge
Diverter: ceramic, 180° rotation; switches between two connected water outlets
Body dimensions shown on the manufacturer drawing: 133 mm high × 64 mm wide × 116 mm overall depth
Mixer-to-diverter centres: 68 mm
Pressure rating: 150–500 kPa
Temperature rating: 1–75°C
Supply: in-wall body / rough-in assembly only; one matching trim kit is required and sold separately

Use the physical product and manufacturer installation instructions for set-out and rough-in. All dimensions are in millimetres.

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Warranty & Return

Warranty

15 Year Cartridge Warranty
7 Year Product or Parts Warranty
1 Year Finish Warranty
1 Year Labour Warranty

Conditions apply.

Phoenix warranty coverage varies by product, finish, country and purchase date. Retain your purchase receipt and follow the manufacturer installation requirements.

Current Phoenix Australia & New Zealand warranty

Phoenix warranty, care and claims

Returns

Please refer to Ideal Bathroom Centre’s Return & Claim policy for return eligibility and approval requirements.

Return & Claim

Maintenance & Care

Manufacturer-stated construction: Brass.
Clean with mild liquid detergent or soap and water. Avoid abrasive, acidic and citrus cleaners, solvents, limescale removers, vinegar and products containing acetic acid. Avoid wax-based furniture creams and rinse away cleaning residues.

Phoenix product maintenance and care

Downloadable Resources

Installation

Installation instructions — Builders diverter mixer IN0362 Rev B (PDF)

Technical drawings

Product specification — 150-7930-40-1 (PDF)

Dimension drawing (JPG)

Parts list and exploded view (JPG)

Body and trim kit selection guide — Brushed Nickel (JPG)

CAD & 3D files

DXF drawings (ZIP)

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Collection brochure

Phoenix Catalogue 2026/27 (online)

Phoenix Builders Catalogue (online)

Order My Color Samples

Order my colour samples

View the physical Phoenix finish before making your selection. Screen colours are indicative.

Order Phoenix Brushed Nickel sample — DB0130-40

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Phoenix Builders Shower / Bath Diverter Mixer (Body Only) - Lead Free, Brushed Nickel

Name: Phoenix Builders Shower / Bath Diverter Mixer (Body Only) - Lead Free, Brushed Nickel
SKU: 150-7930-40-1
Price: 215.25 AUD

Vendor: Phoenix

SKU: 150-7930-40-1

Save 25%

$215.25

$215.25 ~~$287.00~~

Tax included. Shipping calculated at checkout.

Frequently Bought Together

Phoenix Builders Shower / Wall Mixer (Body Only) - Lead Free, Brushed Nickel

$143.25~~$191.00~~

Phoenix Builders Wall Mixer Set (Breech Only) - Lead Free, Brushed Nickel

$181.50~~$242.00~~

Pair With

Phoenix Arlo Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel

$140.25~~$187.00~~

Phoenix Pina Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel

$139.88~~$186.50~~

Phoenix Teva Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel

$188.63~~$251.50~~

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

The Phoenix Builders lead-free shower / bath diverter mixer body is installed behind the wall at the rough-in stage. Its 35 mm ceramic cartridge controls the water, while the 180° ceramic diverter switches between two connected outlets. This Brushed Nickel body allows the final Arlo, Pina or Teva trim design to be selected separately for fit-off.

Key features

In-wall body / rough-in kit only. A compatible trim or fit-off kit is required and sold separately; choose one compatible finish and design.
Compatible Brushed Nickel trim options: Arlo 151-7940-40, Pina 153-7940-40 or Teva 152-7940-40. Choose one trim kit, sold separately.
Allows rough-in stage to be completed before final tapware selection needs to be made
Ceramic 180° rotary diverter to switch between two connected water outlets
35mm ceramic cartridge with 15 year warranty
Brass construction
Lead Free composition
Designed in Australia
Durable, high quality finish

Dimensions & performance

SKU	150-7930-40-1
Product category	Universal Bodies
Collection	Builders
Color	Brushed Nickel
Material	Brass
Cartridge	35 mm ceramic
Diverter	180° ceramic rotary diverter for two connected outlets
Body dimensions	133 mm H × 64 mm W × 116 mm overall depth
Mixer / diverter centres	68 mm
Pressure rating	150–500 kPa
Temperature rating	1–75°C
Included	In-wall body / rough-in assembly with mixer cartridge and diverter. Trim plate and handles are supplied in the separately purchased trim kit.
Purchase requirement	In-wall body / rough-in kit only. A compatible trim or fit-off kit is required and sold separately; choose one compatible finish and design.
Required components	Body / rough-in component only. Select one compatible trim or fit-off kit below, sold separately. The listed kits are alternative choices; select the design and finish required for your installation. Phoenix Arlo Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel 151-7940-40 Phoenix Pina Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel 153-7940-40 Phoenix Teva Shower / Bath Diverter Mixer (Trim Kit Only), Brushed Nickel 152-7940-40

Limited time offer

Get $20 off when you spend $200 or more! Learn more

Specifications

Technical documents

Product specification — 150-7930-40-1 (PDF)

Dimension drawing (JPG)

Installation instructions — IN0362 Rev B (PDF)

Technical information

Model: 150-7930-40-1
Collection: Phoenix Builders
Finish: Brushed Nickel
Construction: lead-free brass
Cartridge: 35 mm ceramic cartridge
Diverter: ceramic, 180° rotation; switches between two connected water outlets
Body dimensions shown on the manufacturer drawing: 133 mm high × 64 mm wide × 116 mm overall depth
Mixer-to-diverter centres: 68 mm
Pressure rating: 150–500 kPa
Temperature rating: 1–75°C
Supply: in-wall body / rough-in assembly only; one matching trim kit is required and sold separately

Use the physical product and manufacturer installation instructions for set-out and rough-in. All dimensions are in millimetres.

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Warranty & Return

Warranty

15 Year Cartridge Warranty
7 Year Product or Parts Warranty
1 Year Finish Warranty
1 Year Labour Warranty

Conditions apply.

Phoenix warranty coverage varies by product, finish, country and purchase date. Retain your purchase receipt and follow the manufacturer installation requirements.

Current Phoenix Australia & New Zealand warranty

Phoenix warranty, care and claims

Returns

Please refer to Ideal Bathroom Centre’s Return & Claim policy for return eligibility and approval requirements.

Return & Claim

Maintenance & Care

Manufacturer-stated construction: Brass.
Clean with mild liquid detergent or soap and water. Avoid abrasive, acidic and citrus cleaners, solvents, limescale removers, vinegar and products containing acetic acid. Avoid wax-based furniture creams and rinse away cleaning residues.

Phoenix product maintenance and care
