Thermogroup Thermonet 150W/m² Self Adhesive 13x0.5m - 6.5m² 975Watts Floor Heating Kit Including 5220A Thermostat ｜ Ideal Bathroom Centre

Specifications

Heating mat specifications

Mat length: 13 m
Mat width: 0.5 m
Heated area: 6.5 m²
Heat output: 975 W
Current: 4.06 A
Mat thickness: 3.5 mm
IP rating: IP68
Cold tail length: 5 m
Heat density: 150 W/m²
Self adhesive mesh: Yes
Installation: Directly below tiles
Resistance: 56 Ω

Thermostat specifications

Width: 85 mm
Height: 115 mm
Depth: 54 mm
Colour: Ice White
Recess depth: 32 mm
IP rating: IP30
Maximum load: 16 A
Heating schedule: 7 day, 6 event
Control type: Programmable

Included components

Included thermostat: 5220A
Cable monitor included: Yes
Cloth tape included: Yes

Technical documents

Product specification (PDF)

Thermostat specification – 5220A (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Underfloor heating systems: Lifetime. Parts and labour. Applies for the life of the original floor covering. Register within 60 days of installation and retain purchase evidence; manufacturer installation and electrical conditions apply. Thermostats have their own 3-year warranty. Repaired heating elements carry a 5-year warranty.

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Any issues must be reported within 48 hours of delivery. Do not proceed with installation if your product is incorrect or damaged. This warranty is provided in addition to your rights under the Australian Consumer Law.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Downloadable Resources

Installation

Installation and user guide (PDF)

Thermostat installation and user guide – 5220A (PDF)

Order My Color Samples

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Thermogroup Thermonet 150W/m² Self Adhesive 13x0.5m - 6.5m² 975Watts Floor Heating Kit Including 5220A Thermostat

Name: Thermogroup Thermonet 150W/m² Self Adhesive 13x0.5m - 6.5m² 975Watts Floor Heating Kit Including 5220A Thermostat
SKU: 111513T
Price: 931.2 AUD

Vendor: Thermogroup

SKU: 111513T

Save 20%

$931.20

$931.20 ~~$1,164.00~~

Tax included. Shipping calculated at checkout.

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Description

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment.

Thermonet is a versatile electric Underfloor Heating mat system designed for easy installation under a range of floor finishes. The Thermonet 150W/m² heating is an Underfloor Heating mat system that is specially designed to be installed directly beneath your tiles in large areas. The Thermonet system can also be covered in a 10mm self-levelling compound and then a floating or glue down timber floor installed on top. The matting system allows for a quicker and easier installation and ensures even cable spacing and even heat spread across the floor.

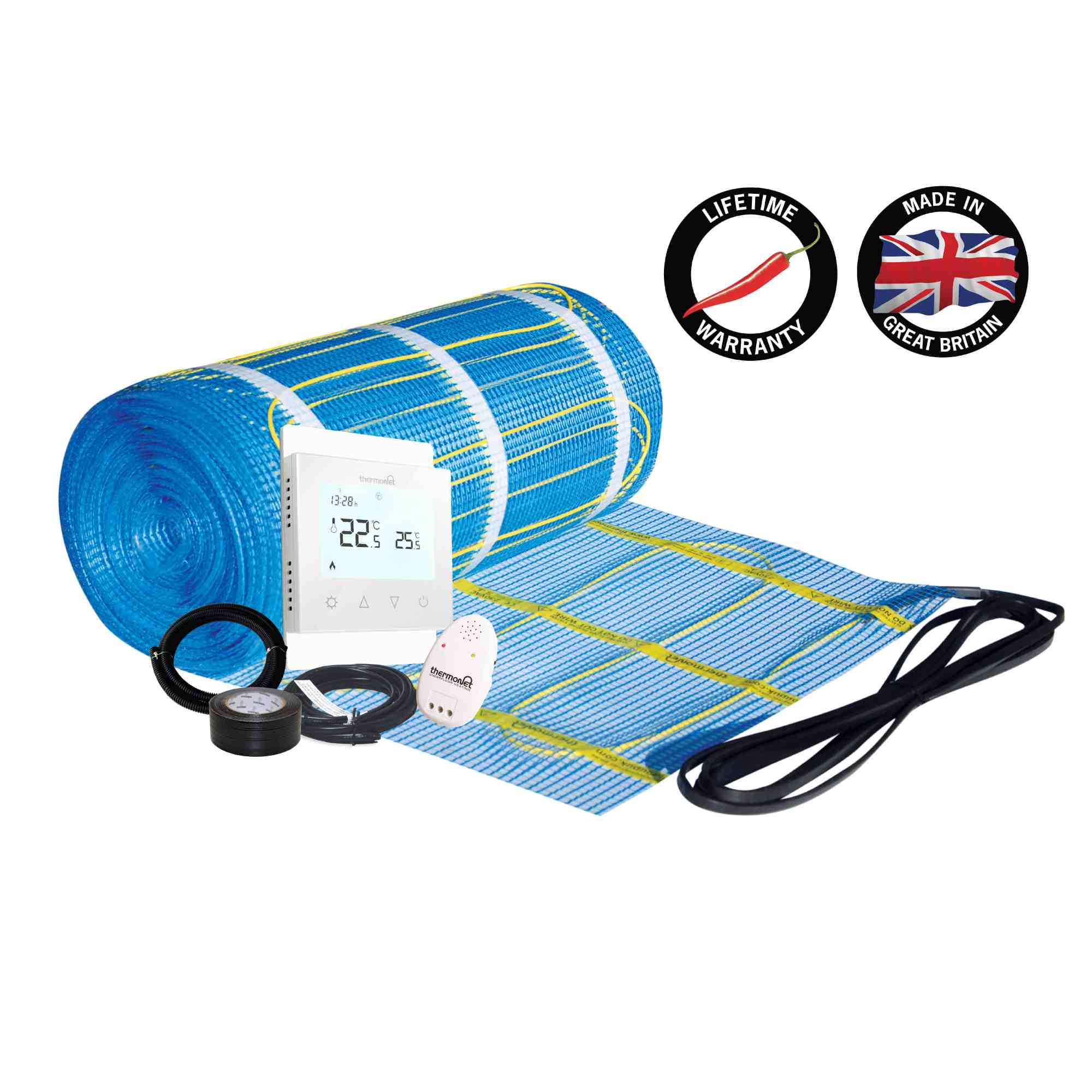

The Thermonet T Kits include your chosen size of Thermonet heating cable, the Thermotouch 7.6iG programmable white 5220A thermostat, a cable monitor and a roll of cloth tape.

Specifications

Stock Code	111513T
Brand	Thermonet
Type	Underfloor Heating
Room	Bathroom
Wattage	975
Voltage	240
Product Size	500x13000x3.5mm
Product Width (mm)	500
Product Height/Length (mm)	13000
Product Depth/Thickness (mm)	3.5
Unit of Measure	Each
Area	6.5m²
Country of Origin	China, United Kingdom
Warranty Years	Lifetime on Heating Cable, 3years on Thermostat
Warranty Months	36

Limited time offer

Get $20 off when you spend $200 or more! Learn more

Specifications

Heating mat specifications

Mat length: 13 m
Mat width: 0.5 m
Heated area: 6.5 m²
Heat output: 975 W
Current: 4.06 A
Mat thickness: 3.5 mm
IP rating: IP68
Cold tail length: 5 m
Heat density: 150 W/m²
Self adhesive mesh: Yes
Installation: Directly below tiles
Resistance: 56 Ω

Thermostat specifications

Width: 85 mm
Height: 115 mm
Depth: 54 mm
Colour: Ice White
Recess depth: 32 mm
IP rating: IP30
Maximum load: 16 A
Heating schedule: 7 day, 6 event
Control type: Programmable

Included components

Included thermostat: 5220A
Cable monitor included: Yes
Cloth tape included: Yes

Technical documents

Product specification (PDF)

Thermostat specification – 5220A (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Downloadable Resources

Installation

Installation and user guide (PDF)

Thermostat installation and user guide – 5220A (PDF)

Order My Color Samples

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
