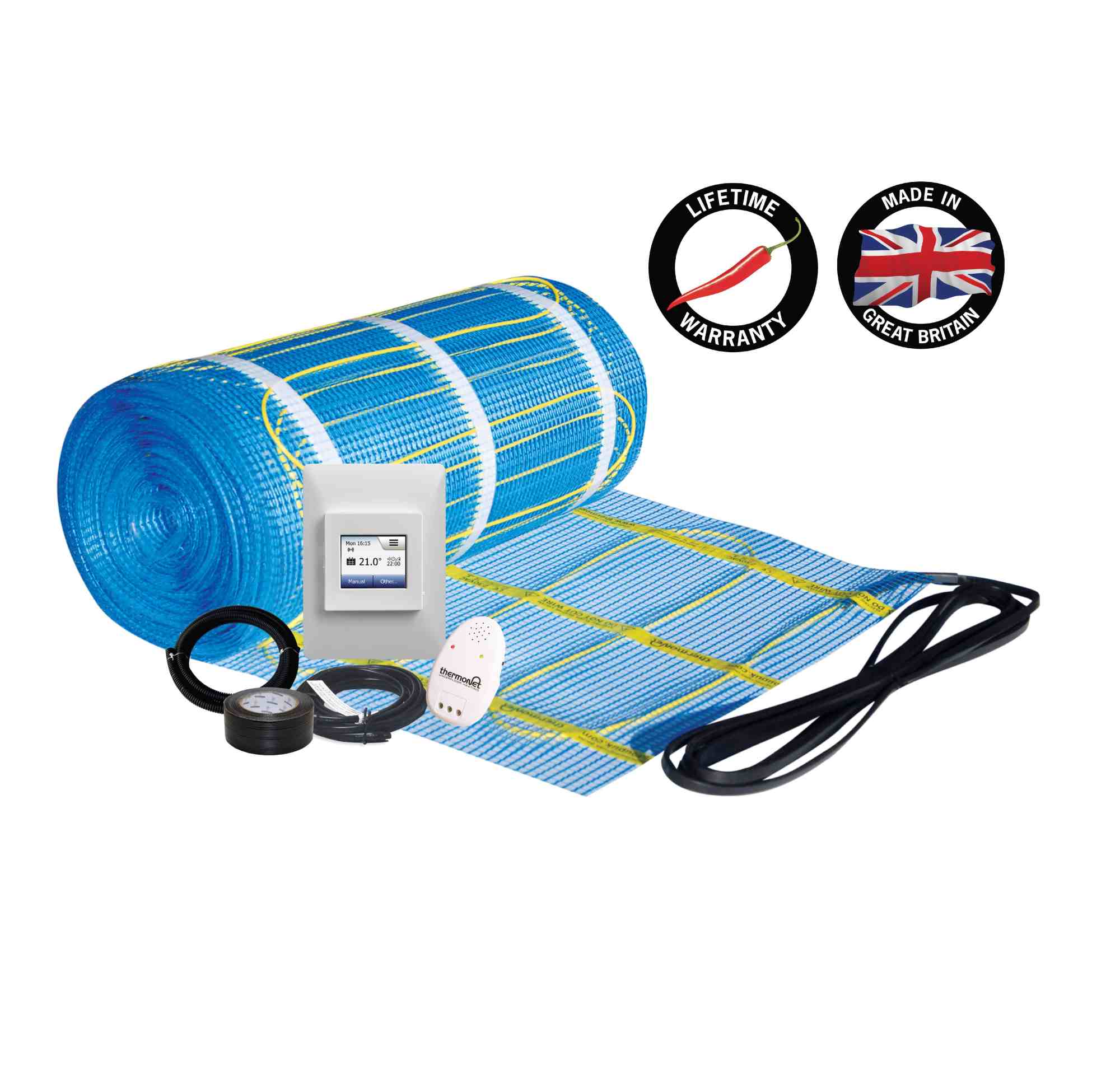

Thermogroup Thermonet 150W/m² Underfloor Heating Kit with Wi-Fi Thermostat, 1 m² (111502TWF)

Name: Thermogroup Thermonet 150W/m² Underfloor Heating Kit with Wi-Fi Thermostat, 1 m² (111502TWF)
SKU: 111502TWF
Price: 524.0 AUD

Vendor: Thermogroup

SKU: 111502TWF

Save 20%

$524.00

$524.00 ~~$655.00~~

Tax included. Shipping calculated at checkout.

Pair With

Thermogroup Black Facial Kit for 5235W Thermostat (5238)

$106.40~~$133.00~~

Thermogroup Econoboard Coated 10mm 1.2 x 0.6m Pack of 6 (6110)

$279.20~~$349.00~~

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key Features

Electric underfloor heating mat rated at 150 W/m²
Self-adhesive mesh holds the cable at an even spacing
Installation: Directly below tiles
Heated area: 1 m²
Kit includes Thermotouch thermostat 5235W, floor sensor, sensor conduit, cable monitor and cloth tape

Specification & Performance

Stock code	111502TWF
Collection	Thermonet
Heating mat — Mat length	2 m
Heating mat — Mat width	0.5 m
Heating mat — Heated area	1 m²
Heating mat — Heat output	150 W
Heating mat — Current	0.63 A
Heating mat — Mat thickness	3.5 mm
Heating mat — IP rating	IP68
Heating mat — Cold tail length	5 m
Heating mat — Heat density	150 W/m²
Heating mat — Self adhesive mesh	Yes
Heating mat — Installation	Directly below tiles
Heating mat — Resistance	353 Ω
Thermostat — Width	84 mm
Thermostat — Height	115 mm
Thermostat — Depth	40 mm
Thermostat — Colour	White
Thermostat — Recess depth	22 mm
Thermostat — IP rating	IP21
Thermostat — Maximum load	16 A
Thermostat — Heating schedule	7 day, 6 event
Thermostat — Control type	Wi-Fi programmable
Included components — Included thermostat	5235W
Included components — Cable monitor included	Yes
Included components — Cloth tape included	Yes
Included components — Floor sensor included	Yes
Included components — Floor sensor conduit included	Yes
