Thermogroup Thermonet 200W/m² Self Adhesive 11x0.5m - 5.5m² 1100Watts Floor Heating Kit Including 5235W Wi-Fi Thermostat ｜ Ideal Bathroom Centre

Specifications

Technical documents

Product specification (PDF)

Thermostat specification – 5235W (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Underfloor heating systems: Lifetime. Parts and labour. Applies for the life of the original floor covering. Register within 60 days of installation and retain purchase evidence; manufacturer installation and electrical conditions apply. Thermostats have their own 3-year warranty. Repaired heating elements carry a 5-year warranty.

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Any issues must be reported within 48 hours of delivery. Do not proceed with installation if your product is incorrect or damaged. This warranty is provided in addition to your rights under the Australian Consumer Law.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Materials

Self adhesive mesh: Yes

Care and product guidance

Follow the manufacturer’s instructions for this product and its components.

Full User Manual

Thermostat installation and user guide – 5235W (PDF)

Downloadable Resources

Downloadable resources

Installation and user guide (PDF)

Thermostat installation and user guide – 5235W (PDF)

Order My Color Samples

Colour & finish selection

The included 5235W thermostat is supplied in White. Refer to the product photographs and specifications to confirm the controller finish.

For physical finish samples, contact Ideal Bathroom Centre at support@idealbathroomcentre.com.au to confirm availability for this product before ordering.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

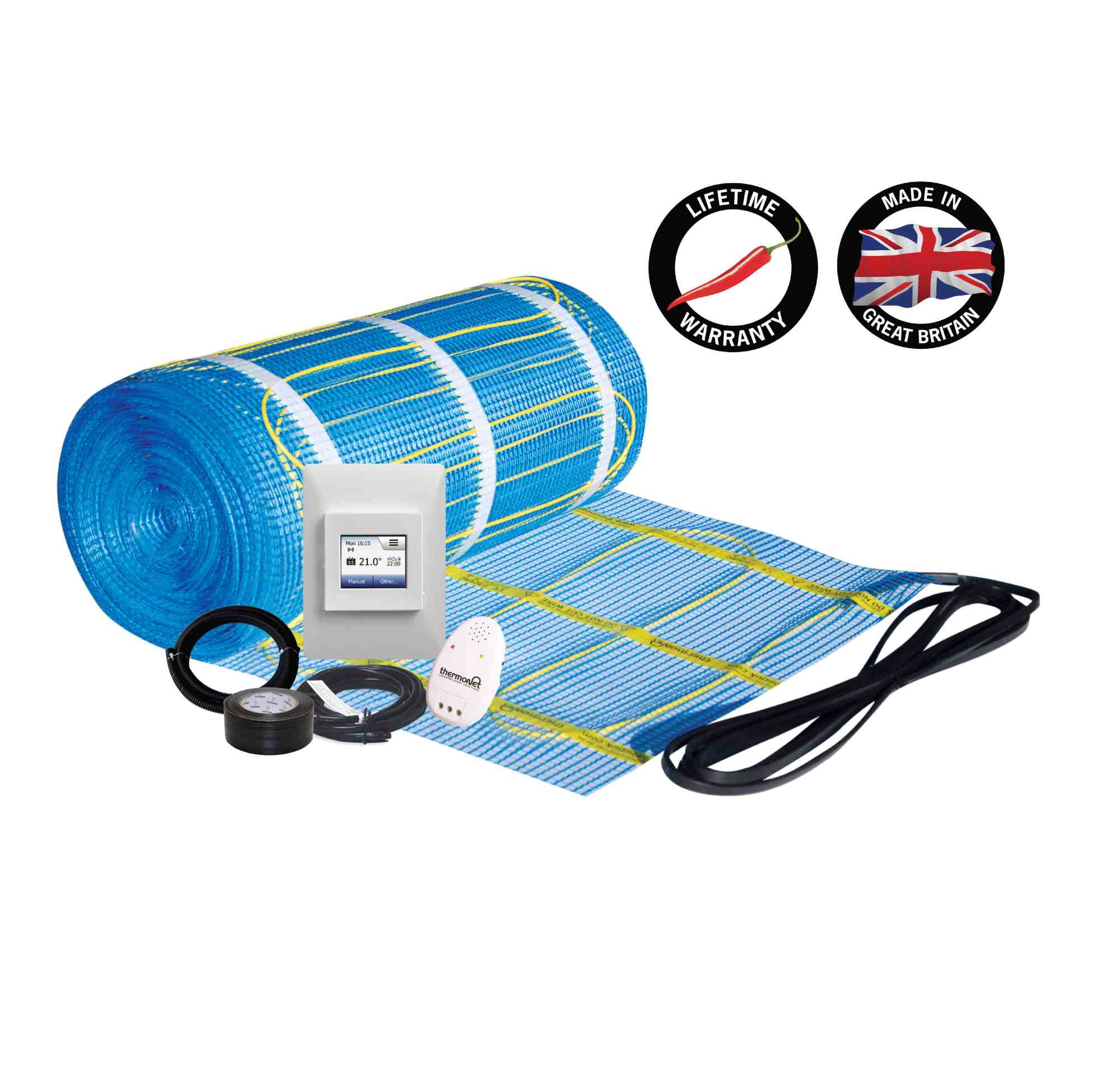

Thermogroup Thermonet 200W/m² Underfloor Heating Kit with Wi-Fi Thermostat, 5.5 m² (112011TWF)

Name: Thermogroup Thermonet 200W/m² Underfloor Heating Kit with Wi-Fi Thermostat, 5.5 m² (112011TWF)
SKU: 112011TWF
Price: 1062.4 AUD

Vendor: Thermogroup

SKU: 112011TWF

Save 20%

$1,062.40

$1,062.40 ~~$1,328.00~~

Tax included. Shipping calculated at checkout.

Pair With

Thermogroup Black Facial Kit for 5235W Thermostat (5238)

$106.40~~$133.00~~

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key Features

Electric underfloor heating mat rated at 200 W/m²
Self-adhesive mesh holds the cable at an even spacing
Installation: In screed / bathroom
Heated area: 5.5 m²
Kit includes Thermotouch thermostat 5235W, floor sensor, sensor conduit, cable monitor and cloth tape

Specification & Performance

Stock code	112011TWF
Collection	Thermonet
Heating mat — Mat length	11 m
Heating mat — Mat width	0.5 m
Heating mat — Heated area	5.5 m²
Heating mat — Heat output	1100 W
Heating mat — Current	4.58 A
Heating mat — Mat thickness	3.5 mm
Heating mat — IP rating	IP68
Heating mat — Cold tail length	5 m
Heating mat — Heat density	200 W/m²
Heating mat — Self adhesive mesh	Yes
Heating mat — Installation	In screed / bathroom
Heating mat — Resistance	48 Ω
Thermostat — Width	84 mm
Thermostat — Height	115 mm
Thermostat — Depth	40 mm
Thermostat — Colour	White
Thermostat — Recess depth	22 mm
Thermostat — IP rating	IP21
Thermostat — Maximum load	16 A
Thermostat — Heating schedule	7 day, 6 event
Thermostat — Control type	Wi-Fi programmable
Included components — Included thermostat	5235W
Included components — Cable monitor included	Yes
Included components — Cloth tape included	Yes
Included components — Floor sensor included	Yes
Included components — Floor sensor conduit included	Yes
