Thermogroup Thermoscreed In Screed 18W/lm Heating Cable - 2.8-3.2m² 33.0lm 600Watts Floor Heating Kit Including 5245 Dual Thermostat ｜ Ideal Bathroom Centre

Specifications

Heating cable specifications

Heating cable length: 33 m
Heated area minimum: 2.8 m²
Heated area maximum: 3.2 m²
Heat output: 600 W
Current: 2.5 A
Cable thickness: 5.5 mm
Cold tail length: 3 m
Area basis: 200 W/m²
Suitable screed depth: 20 - 50 mm
Resistance: 88.2 Ω

Thermostat specifications

Width: 129 mm
Height: 88 mm
Depth: 48 mm
Colour: Ice White
Recess depth: 31 mm
IP rating: IP30
Maximum load: 20 A
Heating schedule: 7 day, 6 event
Control type: Dual programmable
Relay limits: Floor heating 16A; second appliance 5A; total 20A
Display orientation: Portrait or landscape

Included components

Included thermostat: 5245
Cable monitor included: Yes
Cloth tape included: Yes

Technical documents

Product specification (PDF)

Thermostat specification – 5245 (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Underfloor heating systems: Lifetime. Parts and labour. Applies for the life of the original floor covering. Register within 60 days of installation and retain purchase evidence; manufacturer installation and electrical conditions apply. Thermostats have their own 3-year warranty. Repaired heating elements carry a 5-year warranty.

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Any issues must be reported within 48 hours of delivery. Do not proceed with installation if your product is incorrect or damaged. This warranty is provided in addition to your rights under the Australian Consumer Law.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Downloadable Resources

Installation

Installation and user guide (PDF)

Thermostat installation and user guide – 5245 (PDF)

Order My Color Samples

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Thermogroup Thermoscreed In Screed 18W/lm Heating Cable - 2.8-3.2m² 33.0lm 600Watts Floor Heating Kit Including 5245 Dual Thermostat

Name: Thermogroup Thermoscreed In Screed 18W/lm Heating Cable - 2.8-3.2m² 33.0lm 600Watts Floor Heating Kit Including 5245 Dual Thermostat
SKU: 3054TD
Price: 723.2 AUD

Vendor: Thermogroup

SKU: 3054TD

Save 20%

$723.20

$723.20 ~~$904.00~~

Tax included. Shipping calculated at checkout.

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Description

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment.

Thermoscreed is a loose wire heating cable that is designed for use below your screed layer providing a suitable heat performance through a screed layer. Thermoscreed cable is typically used in a bathroom area and is designed to be installed below a screed layer of 20-50mm. The loose wire system makes the Thermoscreed cable suited to small, awkward shaped areas or rooms with a lot of floor mounted fixtures that need to be avoided.

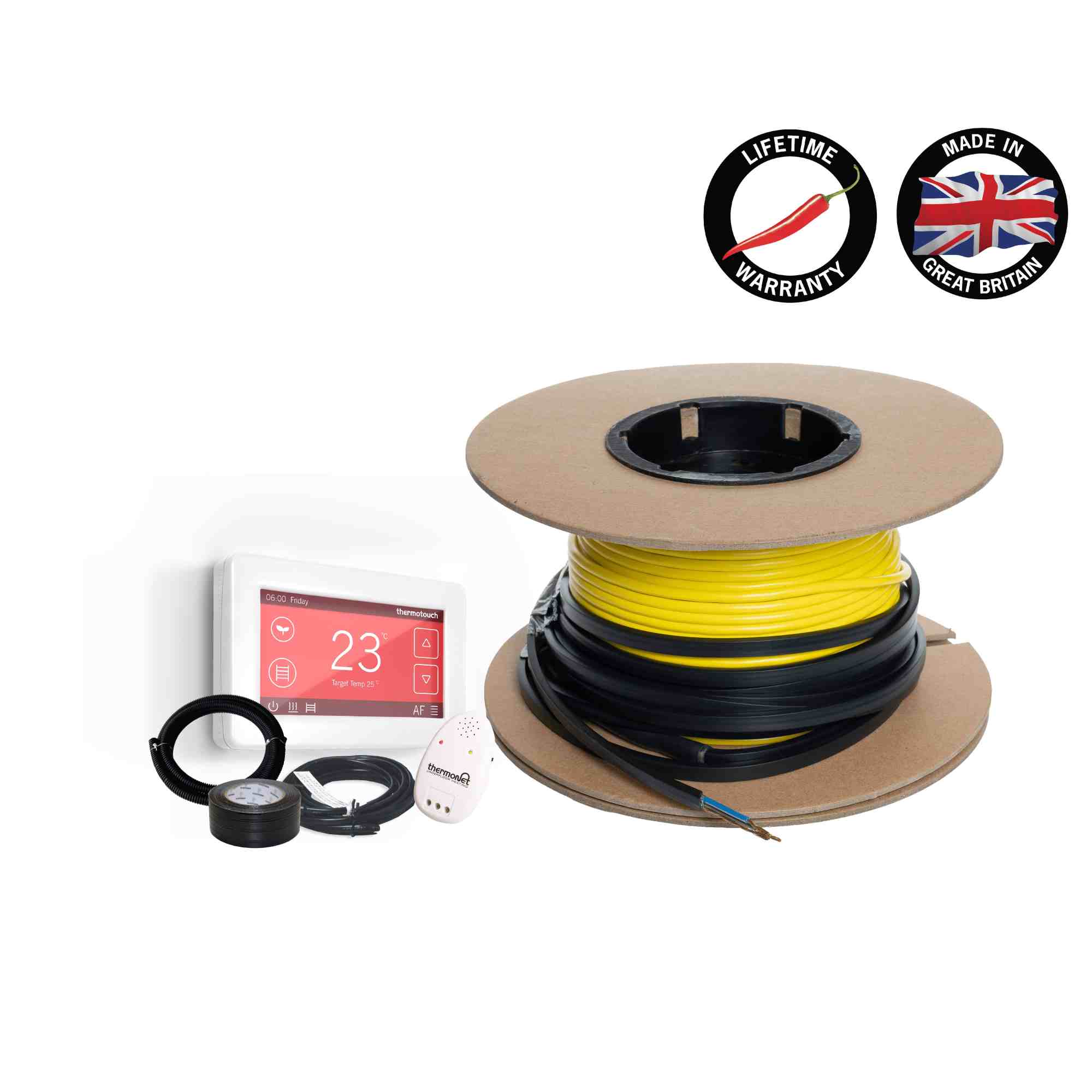

The Thermoscreed TD Kts include your chosen size of Thermoscreed heating cable, the Thermotouch 4.3dC white dual control 5245 thermostat, a cable monitor and a roll of cloth tape.

Specifications

Stock Code	3054TD
Brand	Thermoscreed
Type	Underfloor Heating
Room	Bathroom
Wattage	600
Voltage	240
Product Size	5.5x33000x5.5mm
Product Width (mm)	5.5
Product Height/Length (mm)	33000
Product Depth/Thickness (mm)	5.5
Unit of Measure	Each
Area	2.8-3.2m²
Country of Origin	China, United Kingdom
Warranty Years	Lifetime on Heating Cable, 3years on Thermostat
Warranty Months	36

Limited time offer

Get $20 off when you spend $200 or more! Learn more

Specifications

Heating cable specifications

Heating cable length: 33 m
Heated area minimum: 2.8 m²
Heated area maximum: 3.2 m²
Heat output: 600 W
Current: 2.5 A
Cable thickness: 5.5 mm
Cold tail length: 3 m
Area basis: 200 W/m²
Suitable screed depth: 20 - 50 mm
Resistance: 88.2 Ω

Thermostat specifications

Width: 129 mm
Height: 88 mm
Depth: 48 mm
Colour: Ice White
Recess depth: 31 mm
IP rating: IP30
Maximum load: 20 A
Heating schedule: 7 day, 6 event
Control type: Dual programmable
Relay limits: Floor heating 16A; second appliance 5A; total 20A
Display orientation: Portrait or landscape

Included components

Included thermostat: 5245
Cable monitor included: Yes
Cloth tape included: Yes
