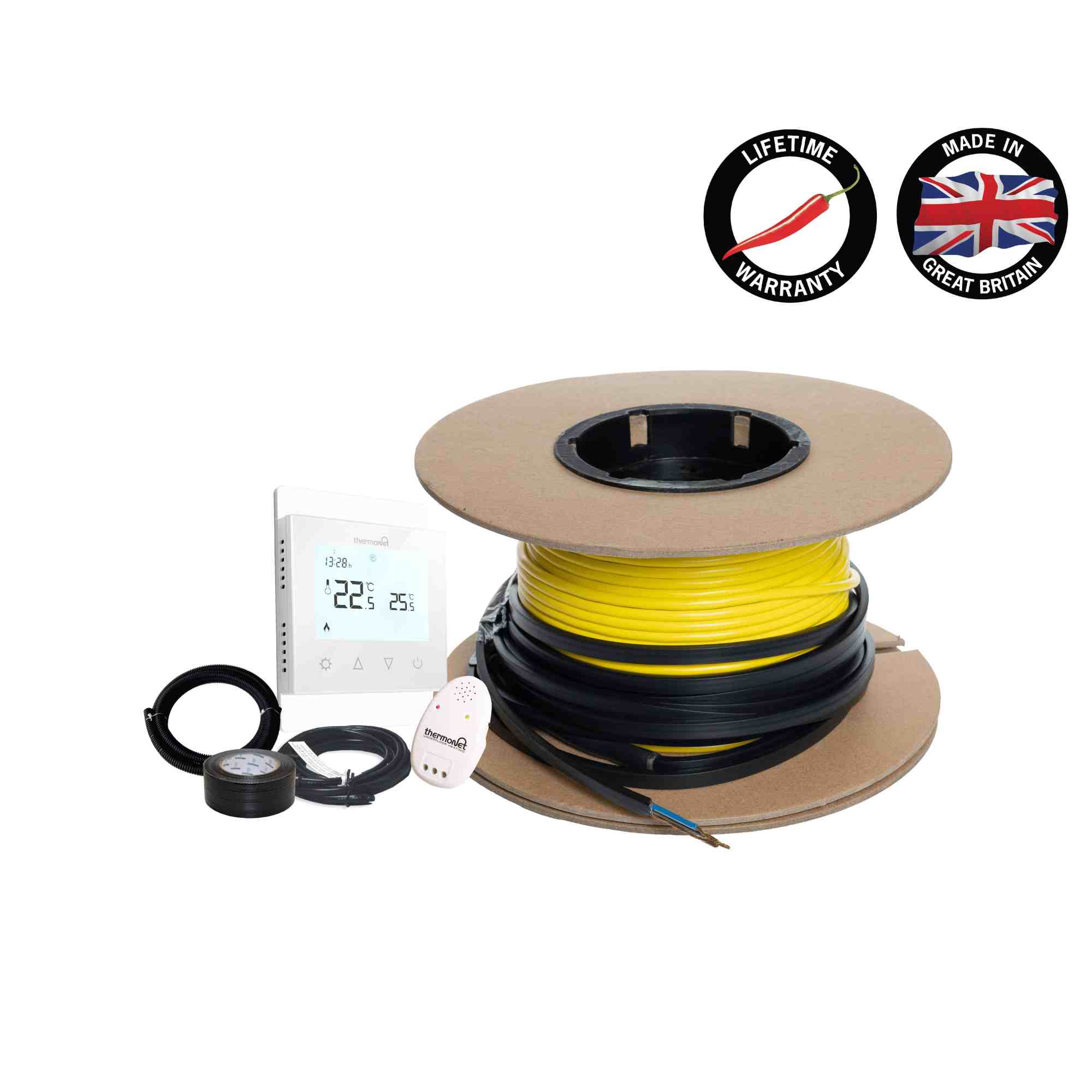

Thermogroup Thermoscreed In Screed 18W/lm Heating Cable - 6.9-7.6m² 76.0lm 1375Watts Floor Heating Kit Including 5220A Thermostat ｜ Ideal Bathroom Centre

Specifications

Technical documents

Product specification (PDF)

Thermostat specification – 5220A (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Underfloor heating systems: Lifetime. Parts and labour. Applies for the life of the original floor covering. Register within 60 days of installation and retain purchase evidence; manufacturer installation and electrical conditions apply. Thermostats have their own 3-year warranty. Repaired heating elements carry a 5-year warranty.

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Any issues must be reported within 48 hours of delivery. Do not proceed with installation if your product is incorrect or damaged. This warranty is provided in addition to your rights under the Australian Consumer Law.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Care and product guidance

Follow the manufacturer’s instructions for this product and its components.

Full User Manual

Thermostat installation and user guide – 5220A (PDF)

Downloadable Resources

Downloadable resources

Installation and user guide (PDF)

Thermostat installation and user guide – 5220A (PDF)

Order My Color Samples

Colour & finish selection

The included 5220A thermostat is supplied in Ice White. Refer to the product photographs and specifications to confirm the controller finish.

For physical finish samples, contact Ideal Bathroom Centre at support@idealbathroomcentre.com.au to confirm availability for this product before ordering.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Thermogroup Thermoscreed In Screed Heating Kit with White Programmable Thermostat, 6.9–7.6 m² (3059T)

Name: Thermogroup Thermoscreed In Screed Heating Kit with White Programmable Thermostat, 6.9–7.6 m² (3059T)
SKU: 3059T
Price: 867.2 AUD

Vendor: Thermogroup

SKU: 3059T

Save 20%

$867.20

$867.20 ~~$1,084.00~~

Tax included. Shipping calculated at checkout.

Pair With

Thermogroup Galvanised Fixing Profile 25m roll (3259)

$125.60~~$157.00~~

Thermogroup In Screed Cable Mesh, 4.5m² Roll (3263)

$68.00~~$85.00~~

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key Features

Electric in-screed heating cable
Designed for a screed depth of 20 - 50 mm
Kit includes Thermotouch thermostat 5220A, floor sensor, sensor conduit, cable monitor and cloth tape

Specification & Performance

Stock code	3059T
Collection	Thermoscreed
Heating cable — Heating cable length	76 m
Heating cable — Heated area minimum	6.9 m²
Heating cable — Heated area maximum	7.6 m²
Heating cable — Heat output	1375 W
Heating cable — Current	5.73 A
Heating cable — Cable thickness	5.5 mm
Heating cable — Cold tail length	3 m
Heating cable — Area basis	200 W/m²
Heating cable — Suitable screed depth	20 - 50 mm
Heating cable — Resistance	38.5 Ω
Thermostat — Width	85 mm
Thermostat — Height	115 mm
Thermostat — Depth	54 mm
Thermostat — Colour	Ice White
Thermostat — Recess depth	32 mm
Thermostat — IP rating	IP30
Thermostat — Maximum load	16 A
Thermostat — Heating schedule	7 day, 6 event
Thermostat — Control type	Programmable
Included components — Included thermostat	5220A
Included components — Cable monitor included	Yes
Included components — Cloth tape included	Yes
Included components — Floor sensor included	Yes
Included components — Floor sensor conduit included	Yes
