Thermogroup Thermowire Undertile Heating Cable - 5.5-6.9m² 66lm 900Watts Kit Including 5245 Dual Thermostat ｜ Ideal Bathroom Centre

Specifications

Technical documents

Product specification (PDF)

Thermostat specification – 5245 (PDF)

Thermogroup 2026 product guide (PDF)

Warranty & Return

Warranty

Underfloor heating systems: Lifetime. Parts and labour. Applies for the life of the original floor covering. Register within 60 days of installation and retain purchase evidence; manufacturer installation and electrical conditions apply. Thermostats have their own 3-year warranty. Repaired heating elements carry a 5-year warranty.

Thermostats and their accessories: 3 years. Replacement; includes the first 12 months parts and labour.

Thermogroup provides the manufacturer warranty. Product and component-specific terms apply.

Thermogroup warranty information

Thermogroup warranty summary (PDF)

Installation must be completed by a licensed tradesperson, and proof of purchase is required.

Any issues must be reported within 48 hours of delivery. Do not proceed with installation if your product is incorrect or damaged. This warranty is provided in addition to your rights under the Australian Consumer Law.

Returns

Stocked items may be returned within 30 days from the invoice date. A restocking fee will apply, calculated from the original invoice price.

A Return Authority (RA) must be obtained prior to return by lodging an application online - Return & Claim.

Returns without an RA will not be accepted.

Return shipping is the customer's responsibility.

Tracking details must be provided within 7 days of RA approval.

Items must be returned unused, undamaged, and in original packaging.

Maintenance & Care

Care and product guidance

Follow the manufacturer’s instructions for this product and its components.

Full User Manual

Thermostat installation and user guide – 5245 (PDF)

Downloadable Resources

Downloadable resources

Installation and user guide (PDF)

Thermostat installation and user guide – 5245 (PDF)

Order My Color Samples

Colour & finish selection

The included 5245 thermostat is supplied in Ice White. Refer to the product photographs and specifications to confirm the controller finish.

For physical finish samples, contact Ideal Bathroom Centre at support@idealbathroomcentre.com.au to confirm availability for this product before ordering.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Thermogroup Thermowire Undertile Heating Kit with White Dual Thermostat, 5.5–6.9 m² (101510TD)

Name: Thermogroup Thermowire Undertile Heating Kit with White Dual Thermostat, 5.5–6.9 m² (101510TD)
SKU: 101510TD
Price: 851.2 AUD

Vendor: Thermogroup

SKU: 101510TD

Save 20%

$851.20

$851.20 ~~$1,064.00~~

Tax included. Shipping calculated at checkout.

Pair With

Thermogroup Econoboard Coated 6mm 1.2 x 0.6m Pack of 8 (6106)

$279.20~~$349.00~~

Thermogroup Econoboard Coated 10mm 1.2 x 0.6m Pack of 6 (6110)

$279.20~~$349.00~~

Sales end in

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key Features

Loose-wire electric undertile heating cable

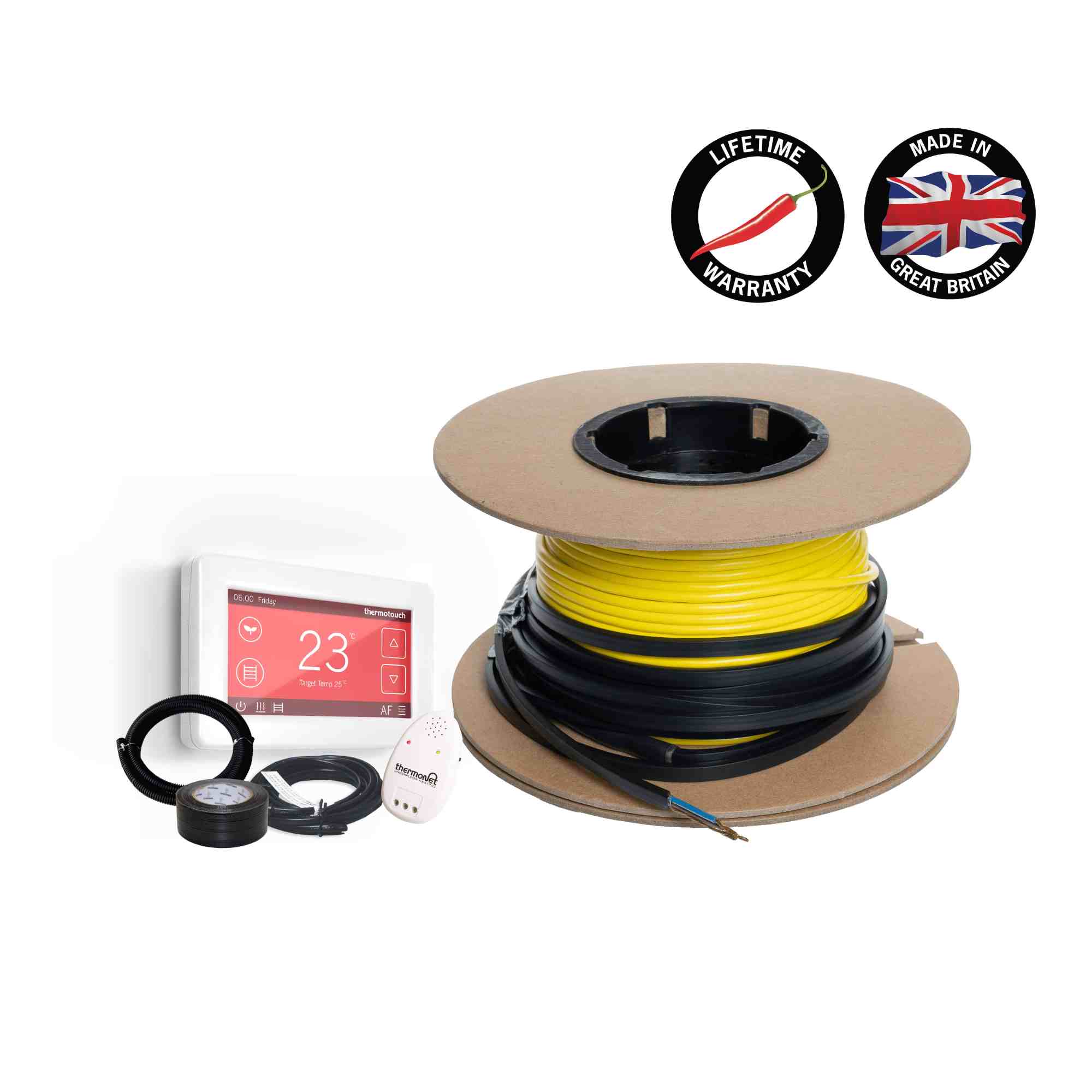

Kit includes Thermotouch thermostat 5245, floor sensor, sensor conduit, cable monitor and cloth tape

Specification & Performance

Stock code	101510TD
Collection	Thermowire
Heating cable — Heating cable length	66 m
Heating cable — Heated area minimum	5.5 m²
Heating cable — Heated area maximum	6.9 m²
Heating cable — Heat output	900 W
Heating cable — Current	3.75 A
Heating cable — Cable thickness	3.5 mm
Heating cable — Cold tail length	5 m
Heating cable — IP rating	IP68
Heating cable — Area basis	150 W/m²
Thermostat — Width	129 mm
Thermostat — Height	88 mm
Thermostat — Depth	48 mm
Thermostat — Colour	Ice White
Thermostat — Recess depth	31 mm
Thermostat — IP rating	IP30
Thermostat — Maximum load	20 A
Thermostat — Heating schedule	7 day, 6 event
Thermostat — Control type	Dual programmable
Thermostat — Relay limits	Floor heating 16A; second appliance 5A; total 20A
Thermostat — Display orientation	Portrait or landscape
Included components — Included thermostat	5245
Included components — Cable monitor included	Yes
Included components — Cloth tape included	Yes
Included components — Floor sensor included	Yes
Included components — Floor sensor conduit included	Yes
