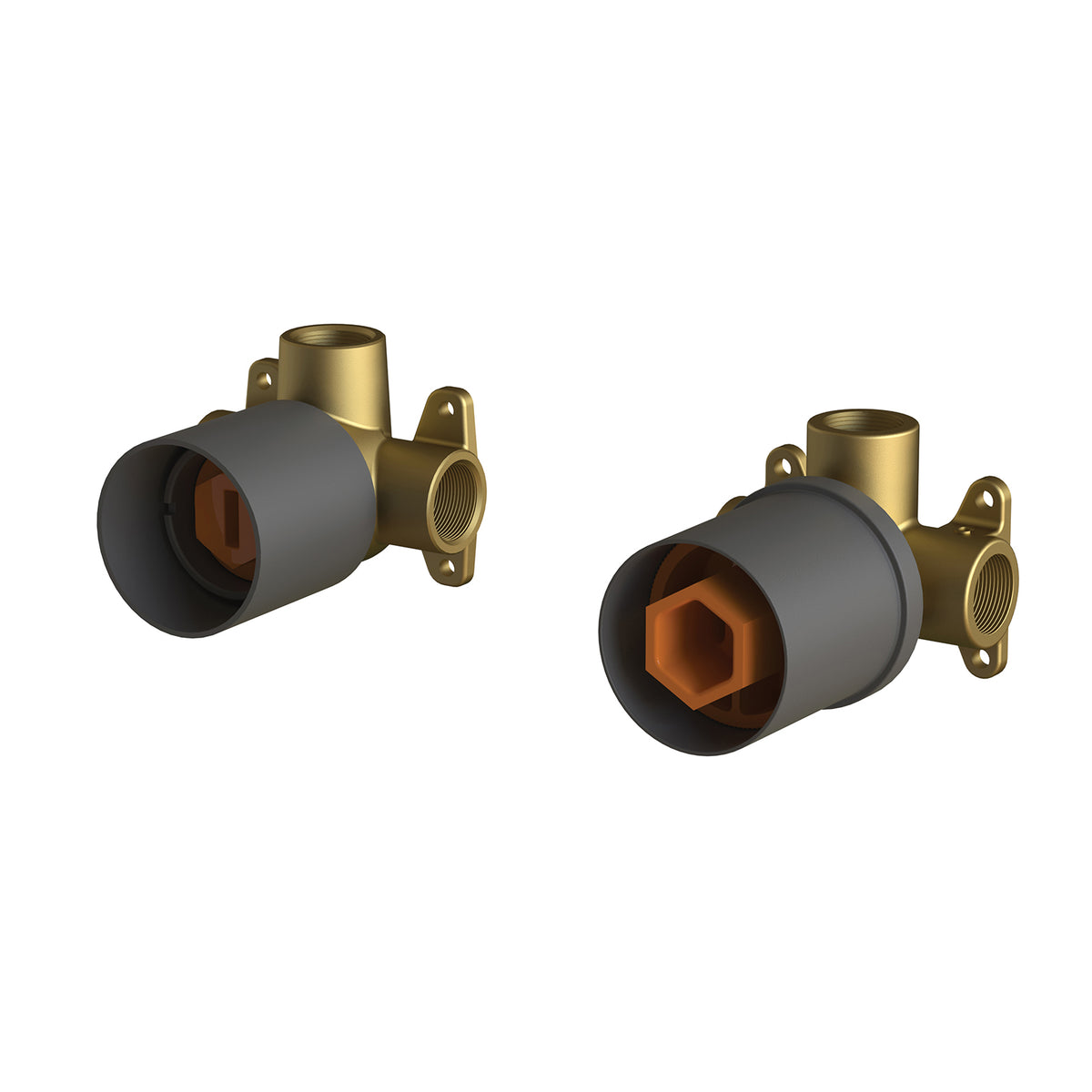

Phoenix SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button - Lead Free

Specifications

Technical documents

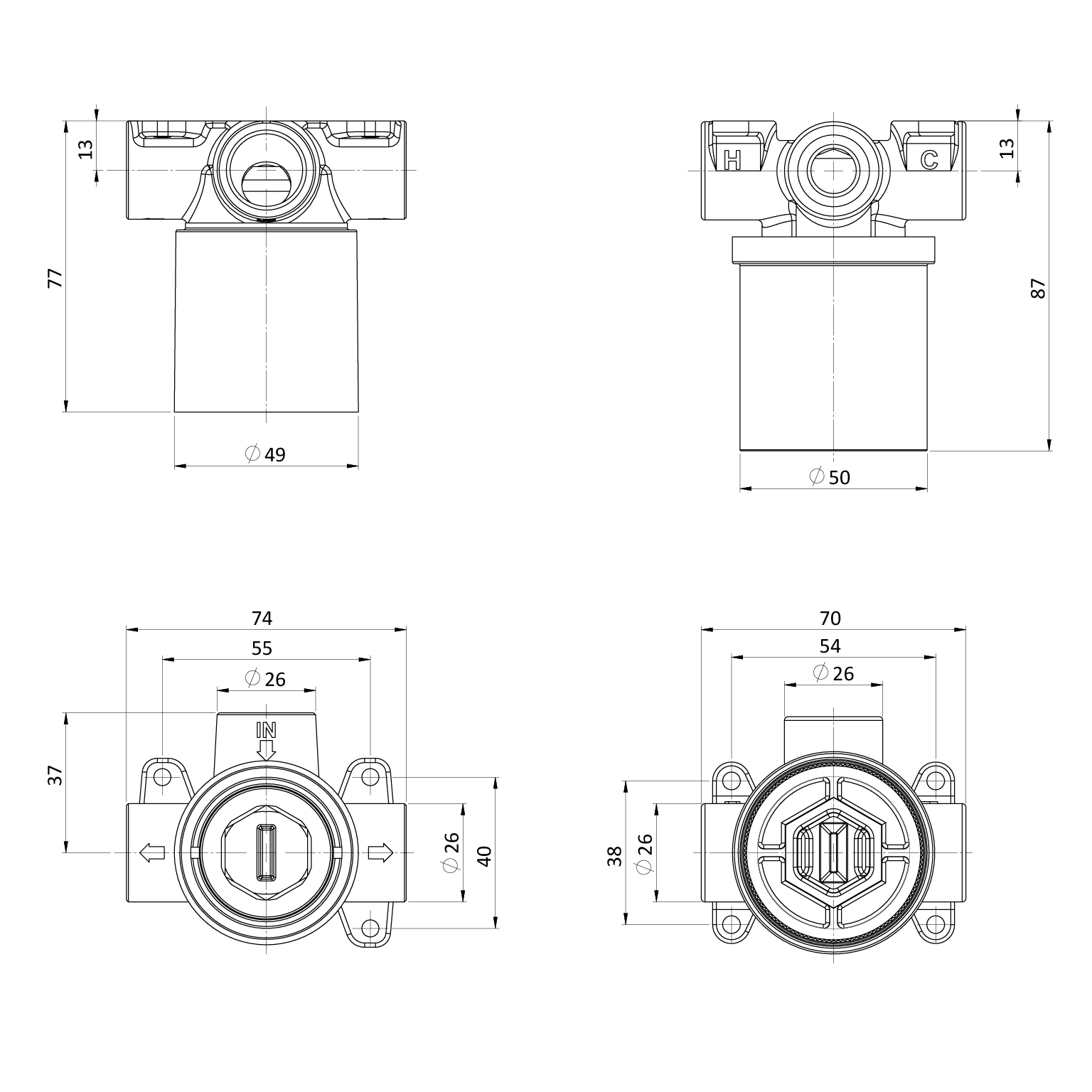

Dimension drawing (JPG)

Product specification (ZIP)

Technical information

Pressure Rating: 150 - 500kPa
Temperature Rating: 1 - 75°C

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Kit configuration

The rough-in assembly and visible fit-off kit are purchased separately. Choose one compatible 146-2940 or 146-2942 finish; the listed fit-off kits are alternatives.

Installation planning

Rough-in adjustment: 53–64 mm, as shown in Phoenix IN0737 Rev A.
Mixer and remote diverter: minimum 150 mm centre-to-centre spacing.
Wall-sheet openings: one 50 mm hole for the mixer and one 50 mm hole for the diverter.
Use physical product measurements for setting out. Complete waterproofing and trim the waterproofing sleeves flush with the tiled surface before fit-off.

Warranty & Return

Warranty

7 Year Product or Parts Warranty
1 Year Labour Warranty

Conditions apply.

Phoenix warranty coverage varies by product, finish, country and purchase date. Retain your purchase receipt and follow the manufacturer installation requirements.

Current Phoenix Australia & New Zealand warranty

Phoenix warranty, care and claims

Returns

Please refer to Ideal Bathroom Centre’s Return & Claim policy for return eligibility and approval requirements.

Return & Claim

Maintenance & Care

Waterproofing sleeves: plastic, as specified by Phoenix. Retain the sleeves during waterproofing and trim them flush with the tiled surface at fit-off.

Clean with mild liquid detergent or soap and water. Avoid abrasive, acidic and citrus cleaners, solvents, limescale removers, vinegar and products containing acetic acid. Avoid wax-based furniture creams and rinse away cleaning residues.

Phoenix product maintenance and care

Downloadable Resources

Installation

Installation instructions — IN0737 Rev A + IN0554 Rev E (ZIP)

CAD & 3D files

ACIS SAT model (ZIP)

DXF drawings (ZIP)

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Collection brochure

Phoenix Catalogue 2026/27 (online)

Phoenix SwitchMix Brochure (online)

Order My Color Samples

Order my colour samples

View the physical Phoenix finish before making your selection. Screen colours are indicative.

Order Phoenix Universal sample — DB0148

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Phoenix SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button - Lead Free

Name: Phoenix SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button - Lead Free
SKU: 250-2935-1
Price: 159.75 AUD

Vendor: Phoenix

SKU: 250-2935-1

Save 25%

$159.75

$159.75 ~~$213.00~~

Tax included. Shipping calculated at checkout.

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key features

In-wall body / rough-in kit only. A compatible trim or fit-off kit is required and sold separately; choose one compatible finish and design.
Pair with any Shower / Bath Diverter Mixer Fit-Off Kit from our Vivid MKII range
Low cost, compact and easy to install. Work can be split across rough-in and fit-off stages
Adjustable set out for flexible installation
Rough-In Kits are designed with a plastic waterproofing sleeve to ensure waterproof integrity is never compromised
Easy options for testing water lines without the cartridge or a hot water service connected
Lead Free composition

Dimensions & performance

SKU	250-2935-1
Product category	Universal Bodies
Collection	SwitchMix
Color	Universal
Kit configuration	Concealed mixer and remote diverter bodies, waterproofing sleeves, test caps and test plugs. Order one compatible fit-off kit separately.
Fit-off stage	The operating cartridges and visible controls are fitted with the selected Vivid MKII fit-off kit.
System layout	Separate mixer and remote diverter controls; two connected water outlets.
Rough-in adjustment	53–64 mm (Phoenix IN0737 Rev A).
Minimum control spacing	150 mm centre to centre.
Wall-sheet cut-outs	Two 50 mm holes: one for the mixer and one for the diverter.
Working pressure	150–500 kPa
Water temperature	1–75°C
Purchase requirement	In-wall body / rough-in kit only. A compatible trim or fit-off kit is required and sold separately; choose one compatible finish and design.

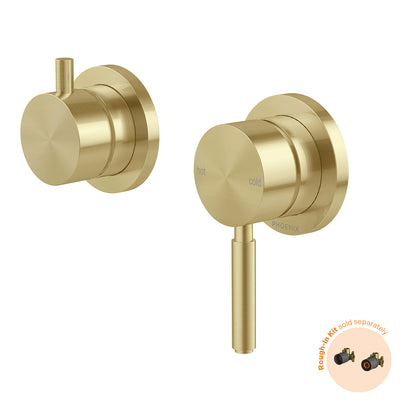

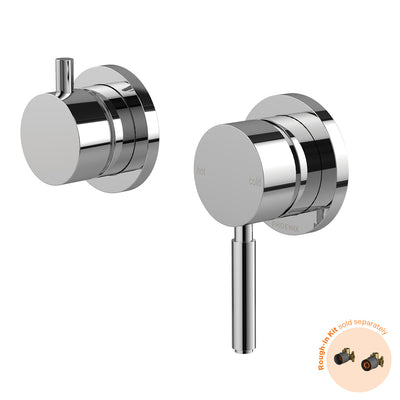

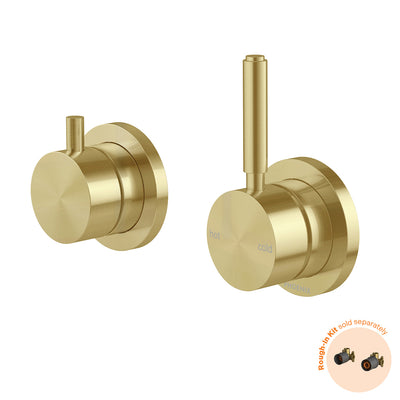

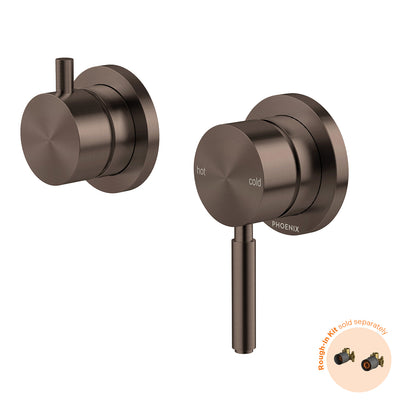

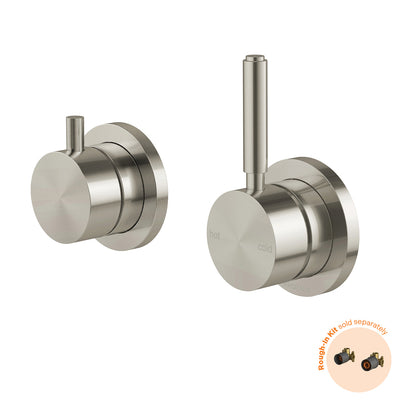

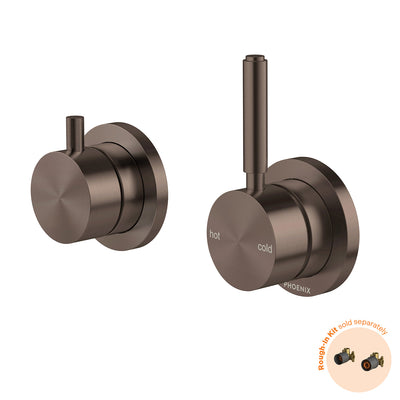

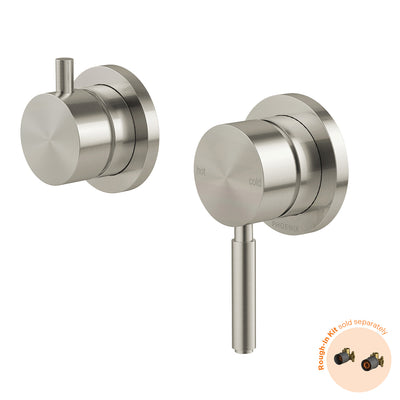

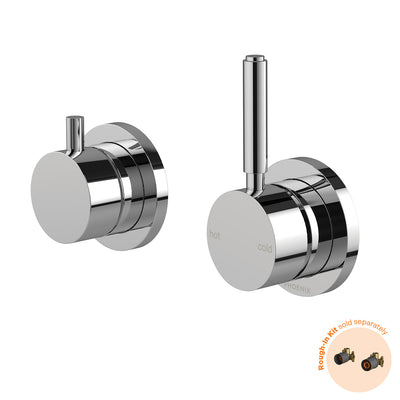

Required components	Body / rough-in component only. Select one compatible trim or fit-off kit below, sold separately. The listed kits are alternative choices; select the design and finish required for your installation. View matching options (10) Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Bronze 146-2940-24-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Carbon 146-2940-31-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Gold 146-2940-12-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Nickel 146-2940-40-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Chrome 146-2940-00-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up (Fit-Off Kit Only) - Lead Free, Brushed Bronze 146-2942-24-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up (Fit-Off Kit Only) - Lead Free, Brushed Carbon 146-2942-31-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up (Fit-Off Kit Only) - Lead Free, Brushed Gold 146-2942-12-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up (Fit-Off Kit Only) - Lead Free, Brushed Nickel 146-2942-40-1 Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up (Fit-Off Kit Only) - Lead Free, Chrome 146-2942-00-1
