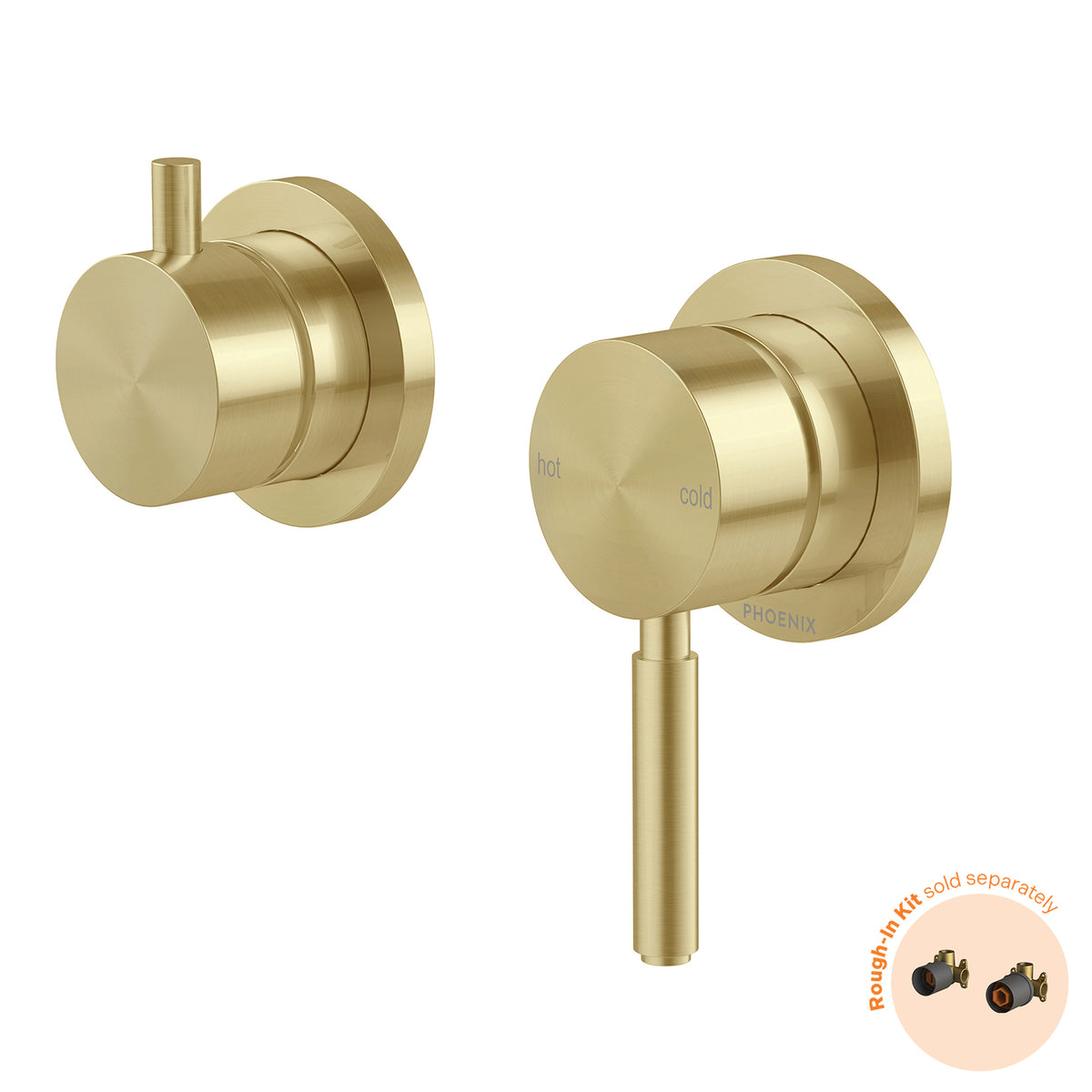

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Gold

Specifications

Technical documents

Dimension drawing (JPG)

Product specification (ZIP)

Technical information

Pressure Rating: 150 - 500kPa
Temperature Rating: 1 - 75°C

Technical drawings

Dimension drawings, spare parts diagrams (ZIP)

Service parts

Mixer cartridge reference: ASK35ASS-NM (Pin Down).
Diverter cartridge reference: GN-35P-D2-3-944 (two-way diverter).
Use the 146-2940 Rev A spare-parts diagram when identifying replacement parts. Confirm the product finish when ordering finish-dependent parts.

146-2940 spare parts diagram - Rev A (ZIP)

Installation planning

Rough-in adjustment: 53–64 mm, as shown in Phoenix IN0737 Rev A.
Mixer and remote diverter: minimum 150 mm centre-to-centre spacing.
Wall-sheet openings: one 50 mm hole for the mixer and one 50 mm hole for the diverter.
Use physical product measurements for setting out. Complete waterproofing and trim the waterproofing sleeves flush with the tiled surface before fit-off.

Warranty & Return

Warranty

15 Year Cartridge Warranty
7 Year Product or Parts Warranty
7 Year Finish Warranty
1 Year Labour Warranty

Conditions apply.

Phoenix warranty coverage varies by product, finish, country and purchase date. Retain your purchase receipt and follow the manufacturer installation requirements.

Current Phoenix Australia & New Zealand warranty

Phoenix warranty, care and claims

Returns

Please refer to Ideal Bathroom Centre’s Return & Claim policy for return eligibility and approval requirements.

Return & Claim

Maintenance & Care

Mixer cartridge: 35 mm ceramic, as specified by Phoenix. Follow the finish-care guidance below for the visible trim.

Clean with mild liquid detergent or soap and water. Avoid abrasive, acidic and citrus cleaners, solvents, limescale removers, vinegar and products containing acetic acid. Avoid wax-based furniture creams and rinse away cleaning residues.

Phoenix product maintenance and care

Downloadable Resources

Installation

Installation instructions — IN0729 Rev A (ZIP)

CAD & 3D files

ACIS SAT model (ZIP)

DXF drawings (ZIP)

Collection brochure

Phoenix Catalogue 2026/27 (online)

Phoenix SwitchMix Brochure (online)

Service parts

146-2940 spare parts diagram - Rev A (ZIP)

Order My Color Samples

Order my colour samples

View the physical Phoenix finish before making your selection. Screen colours are indicative.

Order Phoenix Brushed Gold sample — DB0130-12

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Gold

Name: Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer (Fit-Off Kit Only) - Lead Free, Brushed Gold
SKU: 146-2940-12-1
Price: 225.0 AUD

Vendor: Phoenix

SKU: 146-2940-12-1

Save 25%

$225.00

$225.00 ~~$300.00~~

Tax included. Shipping calculated at checkout.

Sydney Free Shipping over $1,000
Insurance Included
Easy Returns

Modern
Eco-certified
Warranty

Key features

Trim / fit-off kit only. The matching in-wall body or rough-in kit is required and sold separately.
Must be paired with SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button
Includes SwitchMix patented design cartridge
Easily update mixer finish with any Vivid MKII Shower / Bath Diverter Mixer
Ceramic 180° rotary diverter to switch between two connected water outlets
Lead Free composition
35mm ceramic cartridge with 15 year warranty
Designed in Australia
Durable, high quality finish

Dimensions & performance

SKU	146-2940-12-1
Product category	Trim Kits
Collection	Vivid MKII
Color	Brushed Gold
Mixer handle orientation	Pin Down
Mixer cartridge	35 mm ceramic cartridge; supplied with the fit-off kit.
Diverter operation	Ceramic 180° rotary diverter for two connected outlets.
System layout	Separate mixer and remote diverter controls; two connected water outlets.
Rough-in adjustment	53–64 mm (Phoenix IN0737 Rev A).
Minimum control spacing	150 mm centre to centre.
Wall-sheet cut-outs	Two 50 mm holes: one for the mixer and one for the diverter.
Working pressure	150–500 kPa
Water temperature	1–75°C
Purchase requirement	Trim / fit-off kit only. The matching in-wall body or rough-in kit is required and sold separately.
Required components	Trim / fit-off kit only. Purchase the matching body or rough-in component separately to complete the installation. Phoenix SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button - Lead Free 250-2935-1
